Xiangrui Optoelectronics
1 / 2
| Part Name | Material | Thickness |
|---|---|---|
| Cover Glass | Aluminosilicate glass, AR+AF+IR | 2.0mm |
| Cover & Sensor OCA | Optical adhesive | 0.125mm |
| Top ITO Film | ITO, PET | 0.05mm |
| CTP & LCM OCA | Optical adhesive | 0.2mm |
| LCM | Liquid crystal display module | 1.34mm |
| Item | Contents | Unit |
|---|---|---|
| Product Size | 2.1 | inch |
| CG Outline | 124.00 * 78.00 | mm |
| Sensor Outline | 18.50 * 57.60 | mm |
| View Area | 12.79 * 51.06 | mm |
| IC Type | FT6336U | - |
| Interface | I2C | - |
| TFT Resolution | 256 * 64 | - |
| Touch Point | 1 | - |

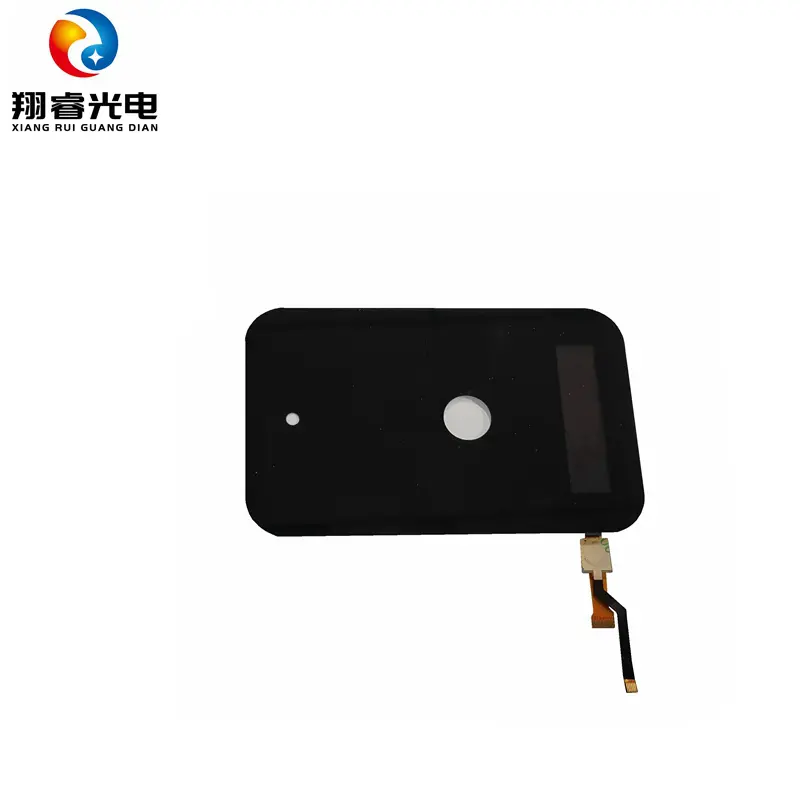

The screen body of this product is only 2.1 inches, and the cover glass is designed to be much larger than the screen body. It features two small transparent holes on the cover glass. The cover surface is treated with premium AR+AF coatings, while the back is printed with specialized IR ink. This advanced configuration is optimized for palm print payment systems, ensuring a convenient, fast, and secure user experience.
The 2.1-inch capacitive touch panel is fully bonded. With its compact size and advanced touchscreen technology, this capacitive touch panel provides a highly responsive and precise touch interface that significantly enhances the overall user experience.
One of the standout features of the device is its palm print payment capability. This innovative technology allows users to make secure and convenient payments using their palm prints, eliminating the need for traditional payment methods such as credit cards or cash.
Despite its small screen size, the device packs a serious punch in terms of features. Its compact form factor makes it easy to carry and use in a variety of environments, allowing it to blend seamlessly into daily operations.
Designed with user convenience in mind, the intuitive interface and user-friendly design make it accessible to users of all skill levels, ensuring everyone can easily benefit from this advanced technology.
Whether you are making payments, browsing content, or enjoying multimedia, this device delivers truly unparalleled performance and convenience. Its palm payment capabilities, small screen size, and advanced touch screen technology make it an excellent choice for users looking for a seamless digital experience.

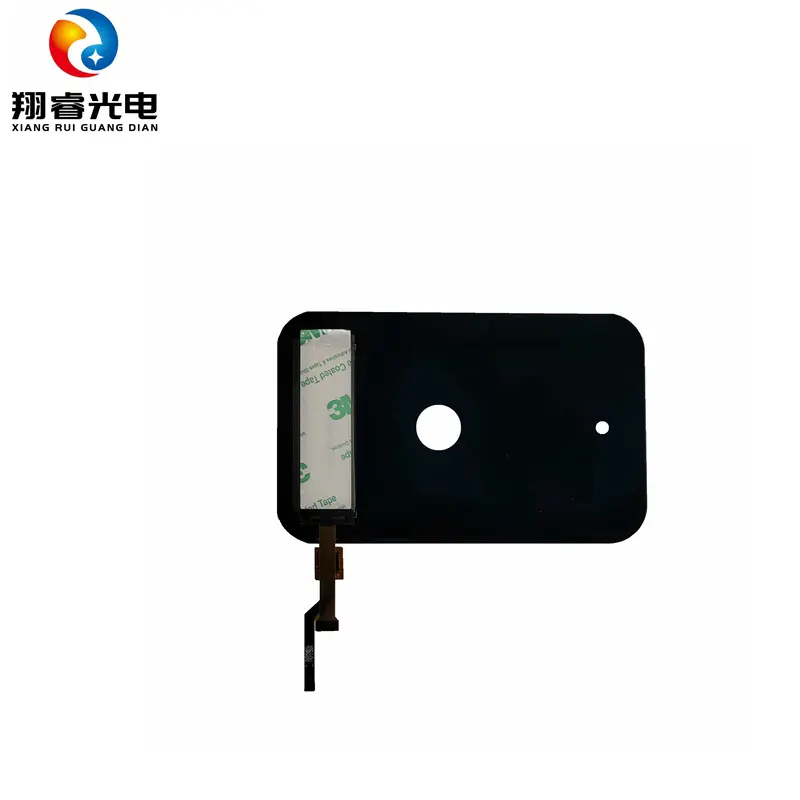

This touch panel is specifically optimized for palm print payment systems. Its design, featuring a larger cover glass with transparent holes and IR ink backing, supports fast, secure, and convenient biometric transactions.
The cover glass is treated with AR (Anti-Reflective) and AF (Anti-Fingerprint) coatings on the front surface to improve visibility and reduce smudges, and printed with IR (Infrared) ink on the back.
The module utilizes the FT6336U touch controller IC and supports an I2C interface for reliable communication with your mainboard.
Yes, the 2.1-inch capacitive touch panel is fully bonded (optical bonding) to the liquid crystal display module (LCM) using high-quality optical adhesive (OCA), which enhances durability and optical clarity.

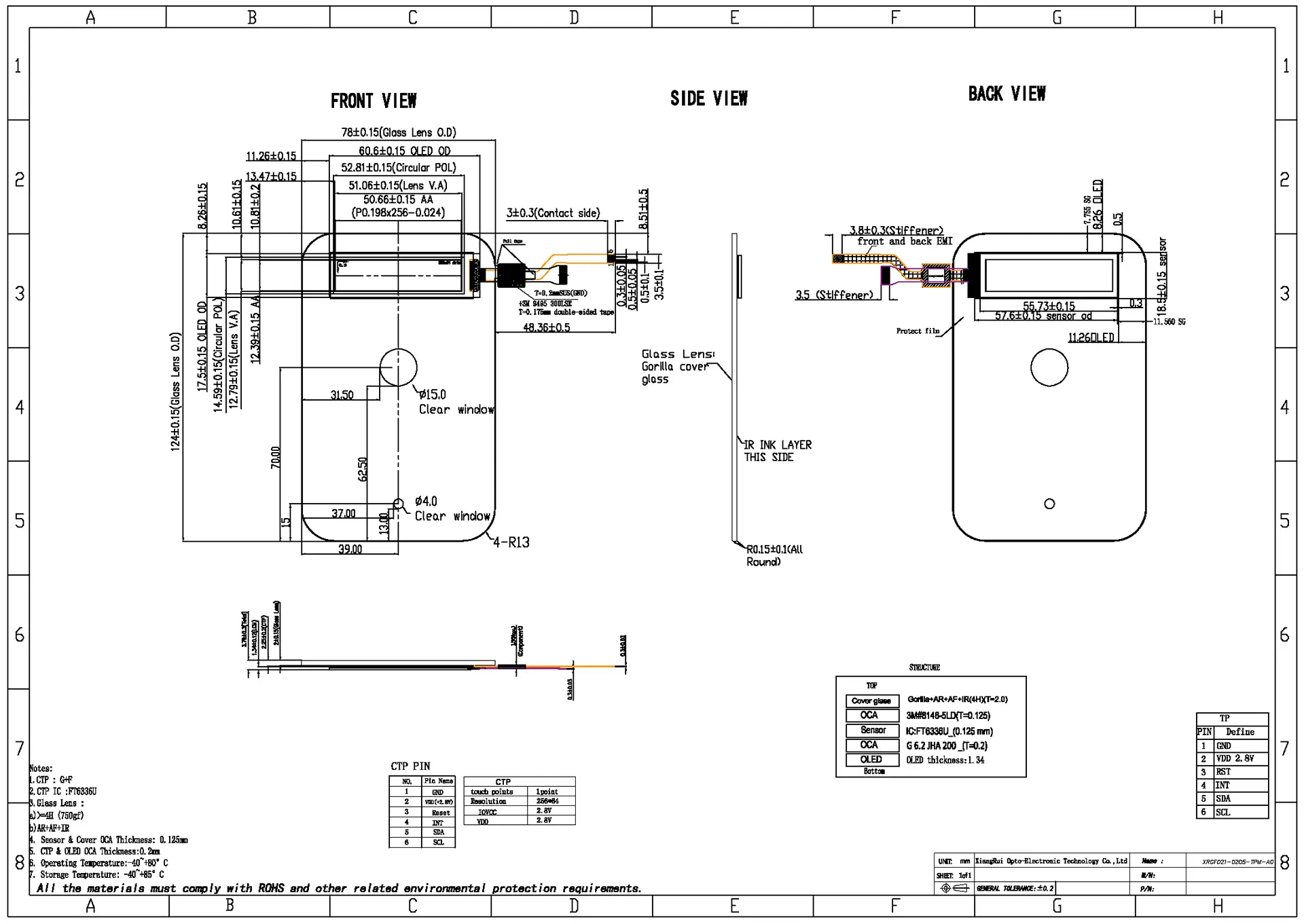

The display has a screen size of 2.1 inches with a TFT resolution of 256 * 64. The cover glass outline measures 124.00 * 78.00 mm, which is designed to be larger than the active sensor outline of 18.50 * 57.60 mm.
This specific 2.1-inch capacitive touch panel is designed to support 1 touch point, which is ideal for dedicated application interfaces and biometric payment terminals.
