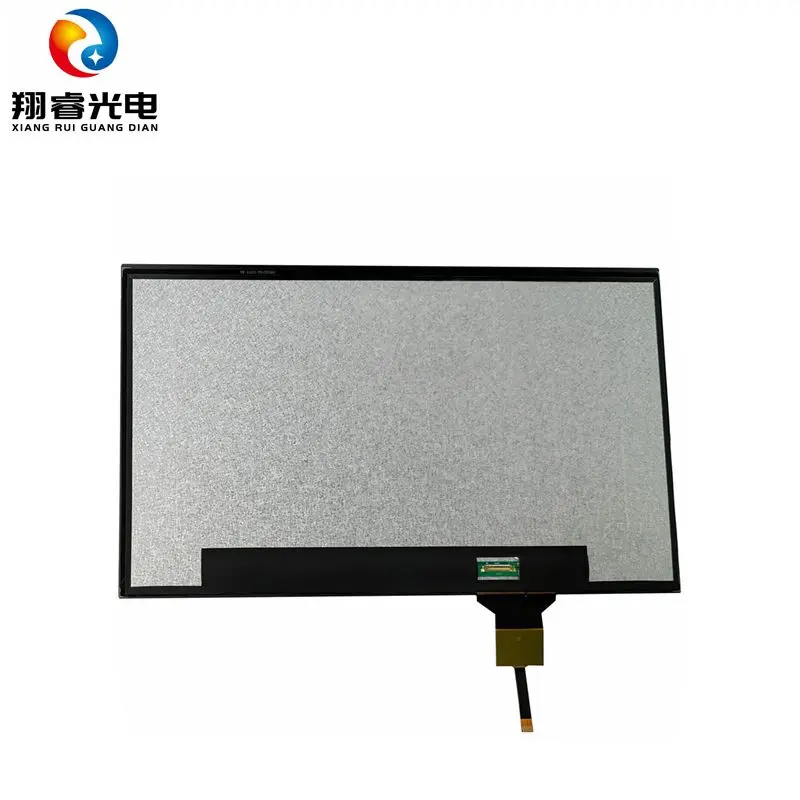

Introducing our latest innovation in display technology - the 15.6 inch capacitive touch panel with optical bonding. This cutting-edge product is designed to provide high-resolution visuals and an enhanced touch experience, making it ideal for a wide range of applications including industrial control systems, medical devices, gaming monitors, and more.
The capacitive touch panel offers a seamless and intuitive touch interface, allowing users to interact with the display effortlessly. With optical bonding technology, the panel is optically bonded to the cover glass, eliminating the air gap between the layers and reducing reflections for improved visibility in various lighting conditions. This results in a clearer, more vibrant display with enhanced contrast and color accuracy.
The 15.6 inch size of the touch panel makes it versatile for use in different devices and environments. Whether it’s integrated into a control panel for industrial machinery or used as a standalone monitor for interactive kiosks, the large screen provides ample space for content and touch interactions. The high-resolution display ensures that images and text are rendered with exceptional clarity, making it easy for users to read and interact with the content on the screen.
ℹ
This product is a 15.6 inch capacitive touch panel with optical bonding. The touch panel features a GG structure, uses an I2C interface, and offers high resolution.
In addition to its visual and touch capabilities, the touch panel with optical bonding is built to withstand the demands of various industries. Its durable construction and reliable performance make it suitable for use in harsh environments where dust, moisture, and temperature fluctuations are common. This ensures that the display remains operational and reliable, even in challenging conditions.
Furthermore, the touch panel is designed for easy integration, with support for various operating systems and compatibility with different hardware configurations. This makes it convenient for OEMs and system integrators to incorporate the touch panel into their products, reducing development time and costs.
Overall, our 15.6 inch capacitive touch panel with optical bonding offers a compelling combination of high-resolution visuals, responsive touch functionality, and robust design, making it an excellent choice for applications that require a reliable and user-friendly display solution. Whether it’s used in industrial settings, medical equipment, or interactive displays, this innovative touch panel is poised to elevate the user experience and deliver exceptional performance.

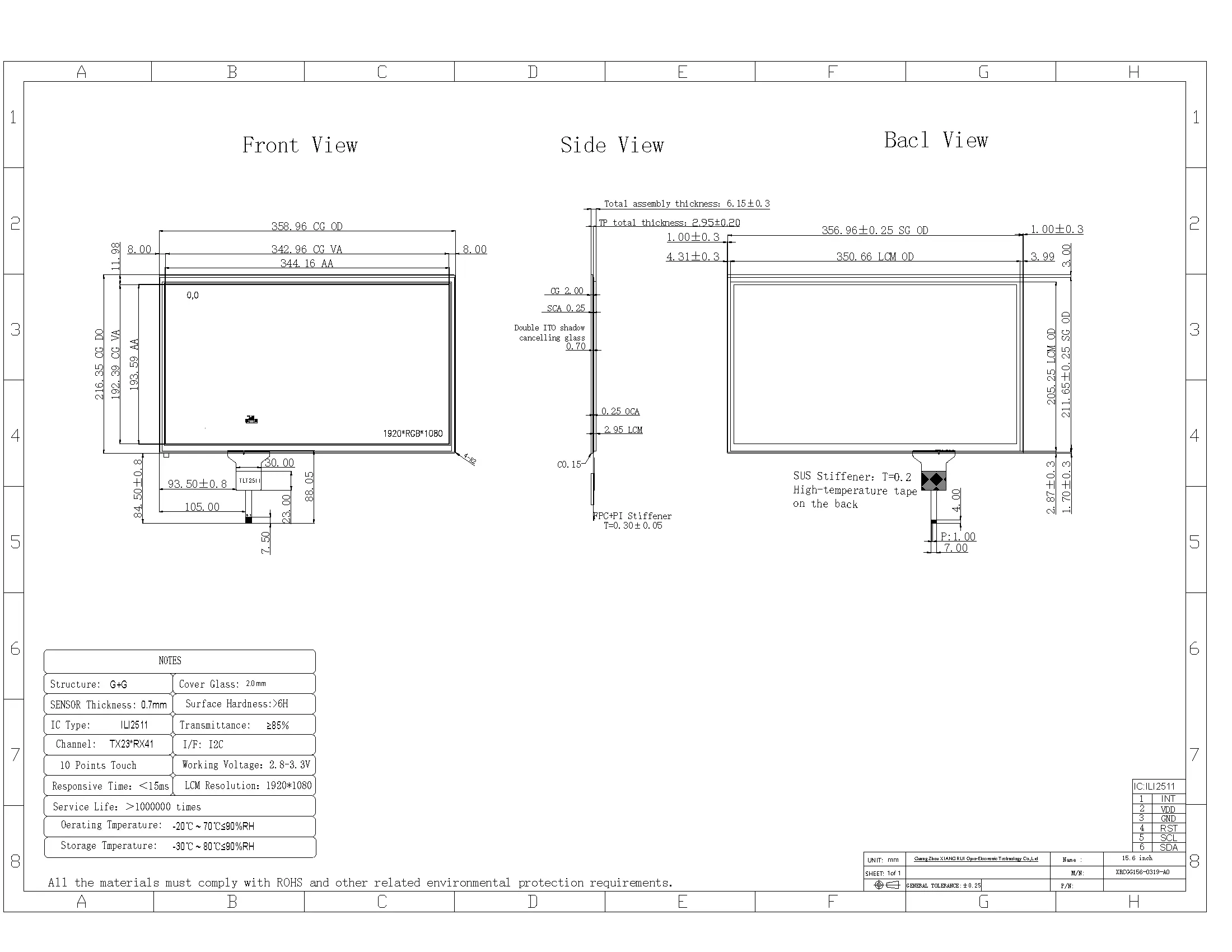

Product Drawing
Structure
| Part Name |
Material |
Thickness |
| Cover Glass |
Soda-lime glass, black ink |
2.0mm |
| SCA |
Solid state optical adhesive |
0.25mm |
| Sensor Glass |
Double ITO shadow cancelling glass |
0.7mm |
| CTP & LCM OCA |
Optical adhesive |
0.25mm |
| LCM |
Liquid crystal display module |
2.95mm |
Specification
| Item |
Contents |
Unit |
| Product Size |
15.6 |
inch |
| CG Outline |
358.96 * 216.35 |
mm |
| Sensor Outline |
356.96 * 211.65 |
mm |
| View Area |
342.96 * 192.39 |
mm |
| IC Type |
ILI2511 |
- |
| Interface |
I2C |
- |
| TFT Resolution |
1920 * 1080 |
- |
| Response |
≤ 15 |
ms |
| Touch Point |
10 |
- |
Frequently Asked Questions
Q: What are the primary applications for this 15.6 inch touch panel?
This capacitive touch panel is ideal for a variety of demanding applications, including industrial control systems, medical devices, gaming monitors, control panels, and interactive kiosks.
Q: What is the advantage of using optical bonding technology?
Optical bonding secures the panel directly to the cover glass, eliminating the air gap between layers. This significantly reduces reflections, improves contrast and color accuracy, and enhances visibility across different light conditions.
Q: What structure and IC controller does this panel utilize?
The panel features a robust GG (Glass-on-Glass) structure and utilizes the reliable ILI2511 IC controller, which supports a high-speed I2C interface.
Q: Can this touch panel operate in harsh environments?
Yes, it is designed with a durable construction to ensure consistent and reliable performance in challenging environments where dust, moisture, and temperature fluctuations are common.
Q: How many simultaneous touch points does the screen support?
The panel supports up to 10 multi-touch points, providing a highly responsive and intuitive user interface with a fast response time of ≤ 15 ms.
Q: What are the outline and view area dimensions of the module?
The Cover Glass (CG) outline dimension is 358.96 * 216.35 mm, the Sensor outline is 356.96 * 211.65 mm, and the active View Area is 342.96 * 192.39 mm.
