Xiangrui Optoelectronics
1 / 3
| Part Name | Material | Thickness |
|---|---|---|
| Top Circuit | Anti-glare hard coating ITO Film, 500 Ω/sq | 0.188mm |
| Spacer | Double side tape | 0.1mm |
| Bottom Circuit | ITO Glass, 500 Ω/sq | 1.8mm |
| Back Adhesive | Double side tape | 0.175mm |
| Item | Contents | Unit |
|---|---|---|
| Product Size | 12.1 | inch |
| Outline Dimension | 276.80 * 180.00 | mm |
| View Area | 262.72 * 164.80 | mm |
| Active Area | 261.72 * 163.80 | mm |
| Max Voltage | DC 5V, 35mA | - |
| Resistance | X: 500 ~ 800 | Y: 150 ~ 450 | Ω |
| Insulation Resistance | DC 25V, ≥10 MΩ | - |
| Chattering Time | ≤ 10 | ms |
| Operation Force | 20 ~ 150 | g |
| Linearity | ≤ 1.5% | - |
| Pen Sliding Durability | ≥ 100,000 | times |
| Tapping Durability | ≥ 1,000,000 | times |

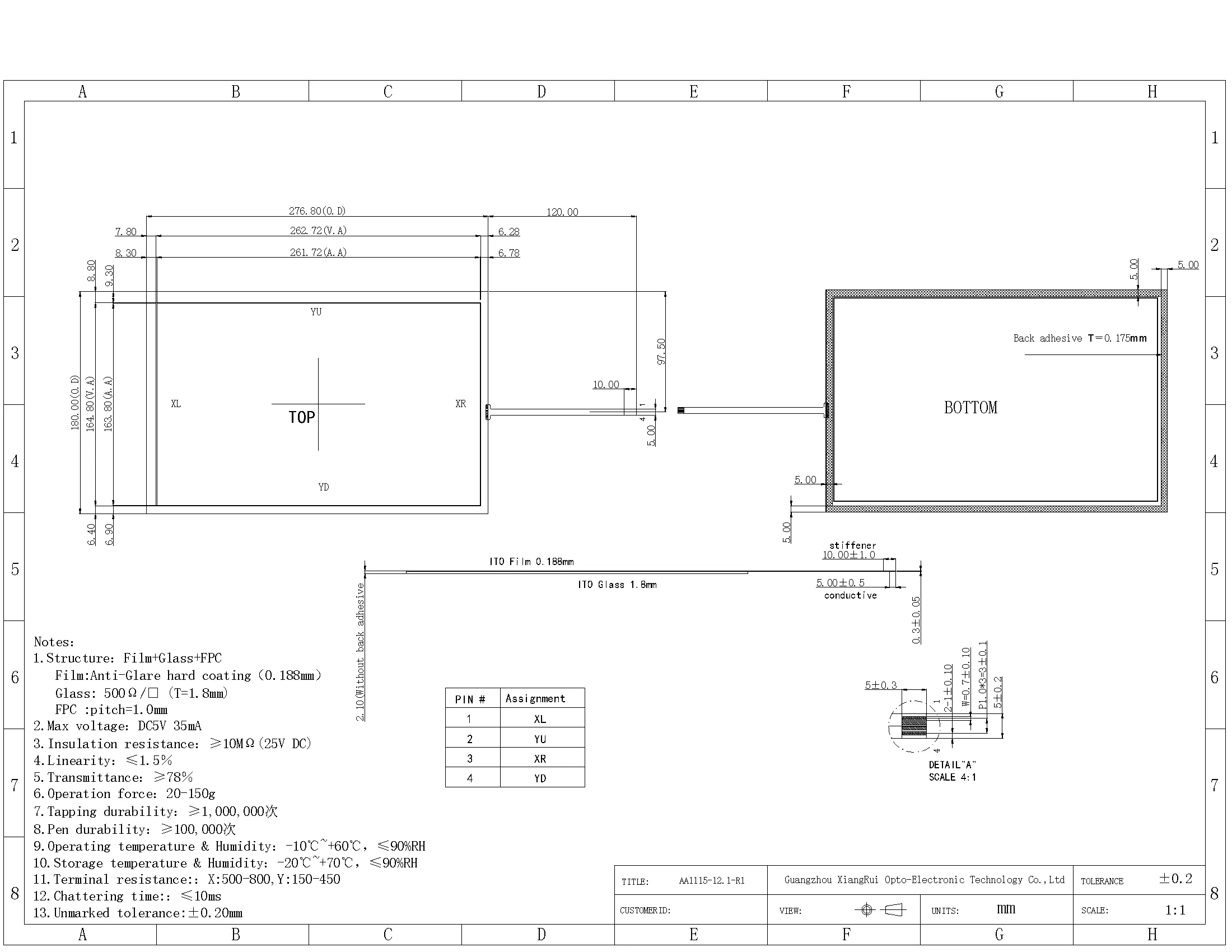

Product Note: This product is a 12.1 inch resistive touch screen, utilizing a traditional two-layer structure. The back of the product is affixed with double-sided tape, with the FPC located in the direction of the short side of the product.
This resistive touch screen is ideal for both commercial and industrial use, including point-of-sale (POS) systems, industrial control panels, interactive kiosks, and other devices requiring robust touch input.
It features a traditional two-layer structure consisting of a top circuit (Anti-glare hard coating ITO Film) and a bottom circuit (ITO Glass), bonded together with a spacer and supported by an adhesive backing for secure attachment.
The touch panel is designed for heavy duty use, offering a tapping durability of ≥1,000,000 times and a pen sliding durability of ≥100,000 times, ensuring long-term reliability in demanding environments.
It operates with an actuation force ranging between 20g to 150g and maintains a highly responsive chattering (response) time of ≤10 milliseconds.
The system supports a maximum electrical input of DC 5V and 35mA, matching standard low-voltage logic systems perfectly.
