Product Description

Product Overview

The 5-inch four-layer structure resistive touch panel features a PET cover lens and glass support plate, ensuring durability and reliability. This combination of materials not only enhances the overall performance of the touch screen but also makes it resistant to scratches and damage, ensuring a long lifespan.

One of the key features of this touch panel is its four-layer structure, which allows for precise and accurate touch input. This means that users can interact with the screen with ease, whether it's for navigating menus, entering data, or controlling applications. The responsive nature of the touch screen ensures a smooth and seamless user experience, making it ideal for use in industrial, medical, automotive, and consumer electronics applications.

In addition to its exceptional touch sensitivity, the 5-inch four-layer structure resistive touch screen boasts a high level of clarity and visibility. The PET panel and glass support plate work together to minimize glare and reflections, ensuring that the display remains clear and easy to read in various lighting conditions. This makes it an ideal choice for outdoor and high-ambient light environments.

The 5-inch four-layer structure resistive touch screen is also designed with durability in mind. Its robust construction and high-quality materials ensure that it can withstand the rigors of daily use, making it suitable for demanding industrial and commercial environments.

Overall, the 5-inch four-layer structure resistive touch screen offers a winning combination of precision, durability, and ease of integration, making it the perfect choice for a wide range of applications. Whether you're looking to enhance the user interface of a medical device, industrial control system, or consumer electronics product, this touch screen is sure to deliver exceptional performance and reliability.

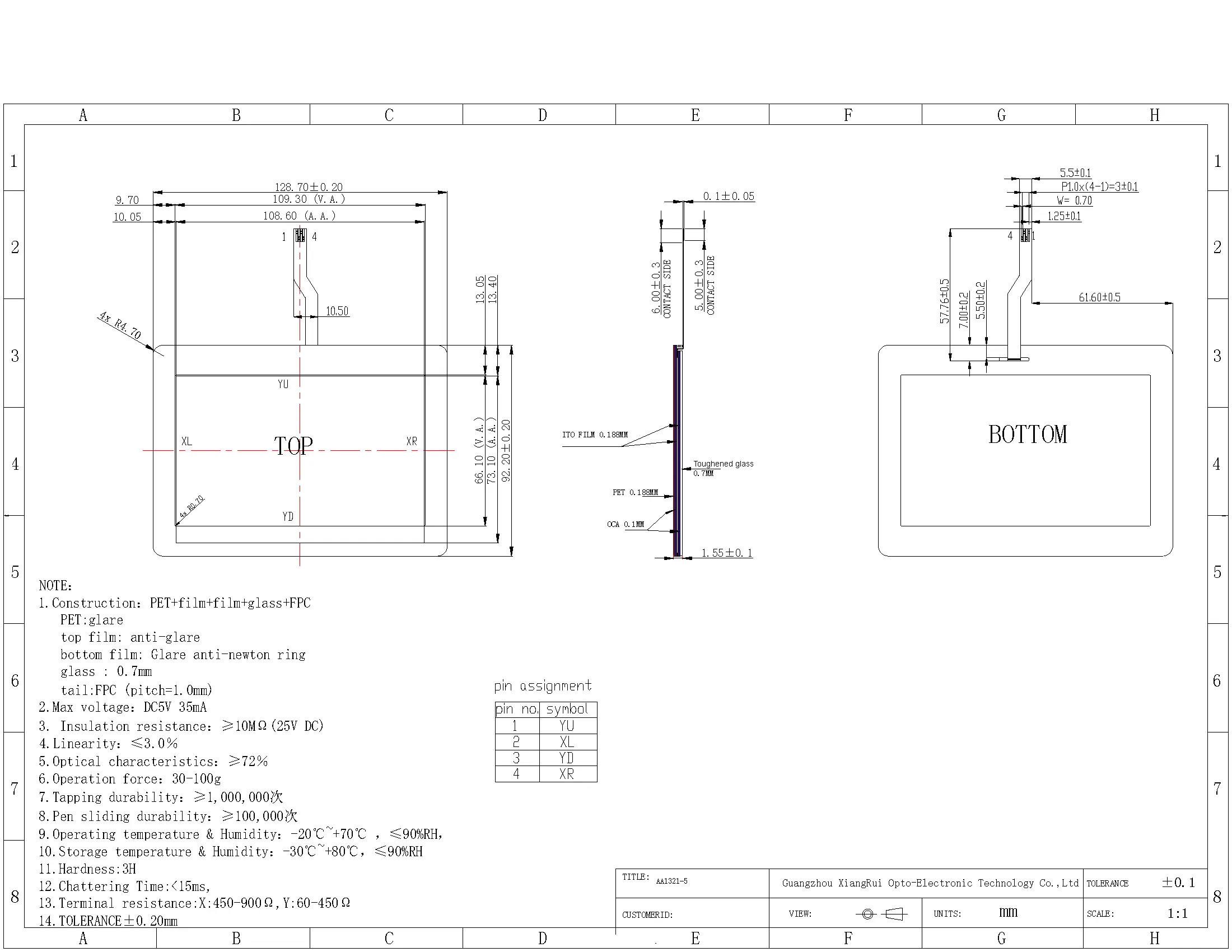

Product Drawing
Product Drawing Specification
Structure Specifications
Part Name Material Thickness
Cover Lens PET 0.188mm
OCA Optical adhesive 0.1mm
Top Circuit Anti-glare hard coating ITO Film, 400±100Ω/□ 0.188mm
Spacer Double side tape 0.1mm
Bottom Circuit Anti-glare hard coating ITO Film, 400±100Ω/□ 0.188mm
OCA Optical adhesive 0.1mm
Substrate Glass Toughened glass 0.7mm
Technical Specifications
Item Contents Unit
Product Size 5.0 inch
Outline Dimension 128.70 * 92.20 mm
View Area 109.30 * 66.10 mm
Active Area 108.60 * 73.10 mm
Max Voltage DC 5V, 35mA -
Resistance X: 450 ~ 900, Y: 60 ~ 450 Ω
Insulation Resistance DC 25V, ≥10 MΩ -
Chattering Time ≤15 ms
Operation Force 30 ~ 100 g
Linearity ≤3% -
Pen Sliding Durability ≥100,000 times
Tapping Durability ≥1,000,000 times
This product is a four-layer resistive touch panel, the cover lens is made of 0.188mm PET, and the support plate is made of 0.7mm toughened glass.
Frequently Asked Questions
What materials are used in the construction of this 5-inch touch panel?
The touch panel features a four-layer structure where the cover lens is made of 0.188mm PET and the support substrate is made of 0.7mm toughened glass, providing excellent scratch resistance and durability.
What are the durability ratings for tapping and pen sliding?
This resistive touch screen is designed for heavy-duty use, offering a pen sliding durability of ≥100,000 times and a tapping durability of ≥1,000,000 times.
What are the typical applications for this touch screen?
Due to its robust construction and high touch precision, it is ideal for industrial control systems, medical devices, automotive displays, and consumer electronics.
How does the screen perform under high-ambient light or outdoor conditions?
The panel features an anti-glare hard coating on the ITO Film which works alongside the PET cover lens to minimize glare and reflections, ensuring high clarity and readability in bright environments.
What is the operating force required to register a touch?
The touch panel has an operational force requirement of 30 to 100 grams, allowing for highly responsive and reliable touch inputs.
