Xiangrui Optoelectronics
1 / 3
| Part Name | Material | Thickness |
|---|---|---|
| Top Circuit | Anti-glare hard coating ITO Film, 500 Ω/□ | 0.188mm |
| Spacer | Double side tape | 0.1mm |
| Bottom Circuit | ITO Glass, 500 Ω/□ | 1.1mm |
| Item | Contents | Unit |
|---|---|---|
| Product Size | 8.0 | inch |

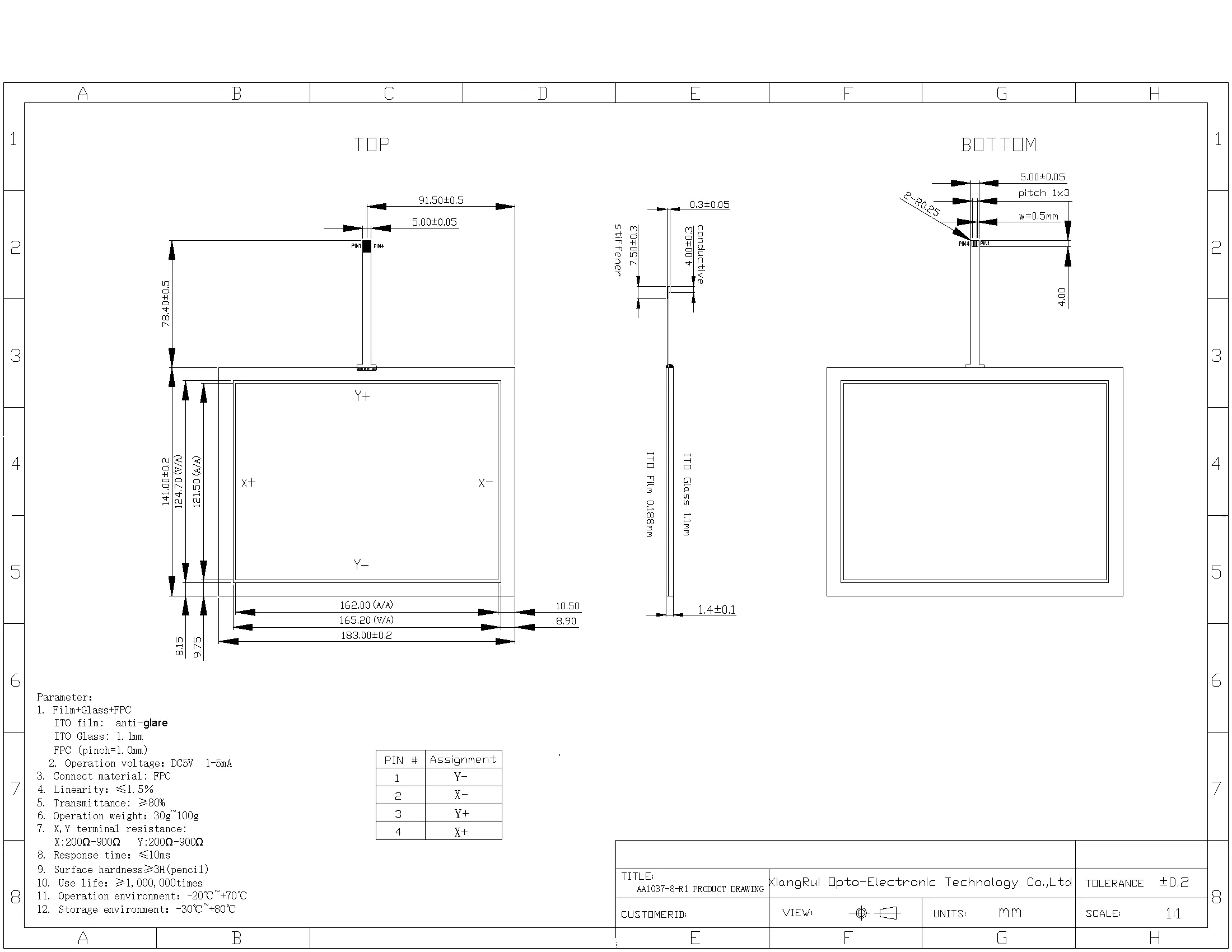

| Outline Dimension | 183.00*141.00 | mm |
| View Area | 165.20*124.70 | mm |
| Active Area | 162.00*121.50 | mm |
| Max Voltage | DC 5V, 1~5mA | - |
| Resistance | X: 200~900, Y: 200~900 | Ω |
| Insulation Resistance | DC 25V, ≥20 MΩ | - |
| Chattering Time | ≤10 | ms |
| Operation Force | 30~100 | g |
| Linearity | ≤1.5% | - |
| Pen Sliding Durability | ≥100,000 | times |
| Tapping Durability | ≥1,000,000 | times |
One of the key features of this 8-inch resistive touch panel is its high-quality construction, which ensures durability and reliability. The screen is designed to withstand the rigors of daily use, making it ideal for industrial, commercial, and consumer applications. Its responsive touch sensitivity allows for precise and accurate input, providing users with a smooth and seamless interaction with the device.
In addition to its exceptional performance, this touch panel is also designed with convenience in mind. Unlike traditional touch screens that require a fixed adhesive layer, this product offers the flexibility of allowing customers to apply adhesive of different thicknesses according to their specific needs. This unique feature sets it apart from other touch screens on the market, giving users the freedom to customize the screen to their exact requirements.
The 8-inch resistive touch panel is easy to install and integrate into a wide range of devices. Its compact size and lightweight design make it suitable for various applications.
This touch screen can be seamlessly integrated into existing systems, minimizing downtime and maximizing productivity.
The 8-inch resistive touch panel offering unparalleled performance, flexibility, and convenience. With its durable construction, responsive touch sensitivity, and customizable adhesive feature, this product is designed to exceed expectations and deliver a superior user experience.
The touch panel is composed of a Top Circuit made of Anti-glare hard coating ITO Film (0.188mm), a Spacer made of double-sided tape (0.1mm), and a Bottom Circuit made of ITO Glass (1.1mm).
No, the back of this product is not pre-fitted with double-sided adhesive. This allows customers to select and apply different adhesive thicknesses during assembly according to their specific project requirements.
The touch panel is built for long-term use, featuring a pen sliding durability of 100,000 times or more, and a tapping durability of 1,000,000 times or more.
Due to its durable and responsive design, this panel is ideal for integration into point-of-sale (POS) systems, medical equipment, industrial control panels, and consumer devices.
The touch panel operates at a maximum voltage of DC 5V (1~5mA), with terminal resistance in both X and Y directions ranging from 200Ω to 900Ω, and insulation resistance of 20 MΩ or higher at DC 25V.
