High-Quality 10.1inch wide-temperature industrial-grade Capacitive touch panel optical bonding(IP65 protection rating) Product, Products

This product is 10.1 inch capacitive touch panel optical bonding, the touch panel is GG structure, using USB & IC2 interface, high resolution.

Product Description

This product is a 10.1-inch capacitive touch panel featuring GG structure optical bonding, utilizing USB & I2C interfaces to deliver outstanding performance and exceptional clarity.
Introducing the latest innovation in touch panel technology - the 10.1 inch Capacitive Touch Panel with GG structure optical bonding. This product is equipped with advanced capacitive touch technology, allowing for precise and accurate touch input. Whether you're swiping, tapping, or pinching, this touch panel delivers a seamless and intuitive user experience.
One of the standout features of this touch panel is its GG structure optical bonding. This innovative technology eliminates the air gap between the touch panel and the display, resulting in improved optical performance and enhanced durability. The bonded structure reduces reflections and glare, ensuring crystal-clear visibility even in bright environments. Additionally, the GG structure optical bonding enhances the overall ruggedness of the touch panel, making it resistant to scratches and impact damage.
The 10.1-inch Capacitive Touch Panel is not only a powerhouse in terms of performance and durability but also in terms of versatility. Its sleek and slim design makes it suitable for a wide range of applications, including industrial control panels, medical devices, interactive kiosks, and more. With its wide viewing angles and high resolution, this touch panel is perfect for delivering vibrant and engaging visual content.
In addition to its impressive technical capabilities, the 10.1-inch Capacitive Touch Panel is designed with user convenience in mind. Its plug-and-play functionality ensures easy integration with various devices, while its low power consumption makes it an energy-efficient choice. Whether you're a manufacturer looking to enhance the user interface of your product or a designer aiming to create a captivating interactive experience, this touch panel is the perfect solution.
Furthermore, the touch panel is built to meet the highest quality standards, ensuring long-term reliability and performance. Its robust construction and rigorous testing make it suitable for demanding environments where reliability is paramount.

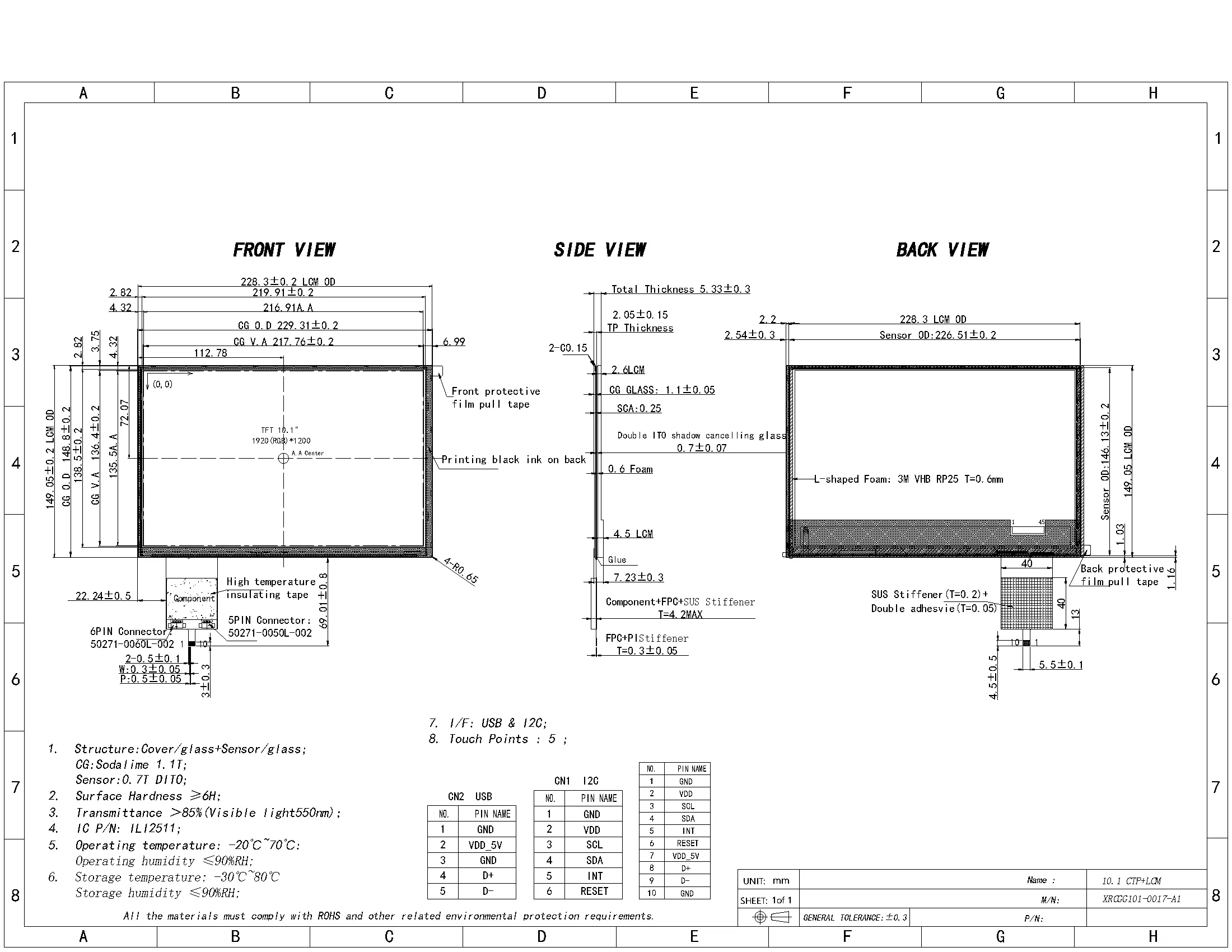

Product Drawing

10.1 Inch Touch Panel Product Drawing

Structure Specifications

Part Name Material Thickness
Cover Glass Soda-lime glass, black ink 1.1mm
SCA Solid state optical adhesive 0.25mm
Sensor Glass Double ITO shadow cancelling glass 0.7mm
CTP & LCM OCA Optical adhesive 0.2mm
LCM Liquid crystal display module 4.5mm

Technical Parameters

Item Contents Unit
Product Size 10.1 inch
CG Outline 229.31 * 148.80 mm
Sensor Outline 226.51 * 146.13 mm
View Area 217.76 * 136.40 mm
IC Type ILI2511 -
Interface USB & I2C -
TFT Resolution 1920 * 1200 px
Response ≤ 25 ms
Touch Point 5 points

Frequently Asked Questions

Q What are the main advantages of GG structure optical bonding?
GG (Glass-on-Glass) structure optical bonding eliminates the air gap between the touch panel and display. This drastically reduces reflections and glare, enhances optical clarity in bright conditions, and increases the overall structural integrity to resist scratches and impact.
Q What interface options does this 10.1-inch touch panel support?
The panel is designed with dual interface support, featuring both USB and I2C connections to ensure broad hardware compatibility and simple integration capabilities.
Q Does this display support multi-touch control?
Yes, it supports up to 5 multi-touch points, enabling responsive and flexible gesture controls such as pinching, tapping, and zooming.
Q What is the screen resolution and response speed of this module?
The TFT display delivers a high resolution of 1920 * 1200 pixels, paired with a rapid response time of ≤ 25 ms for smooth display outputs and touch inputs.
Q Which application scenarios is this product designed for?
Its robust construct makes it highly suitable for demanding applications, including industrial control interfaces, medical systems, interactive public kiosks, and outdoor smart terminals.
