VHB 5952 Gasket, attach to the back of the cover glass
1.1mm
Back Tape
AMK 5550, attach to the back of the sensor
0.5mm
Specification
Item
Contents
Unit
Product Size
15.0
inch
CG Outline
347.80*275.55
mm
Sensor Outline
336.00*255.60
mm
View Area
302.00*227.00
mm
IC Type
ILI2511
-
Interface
USB
-
Response
≤20
ms
Touch Point
10
-

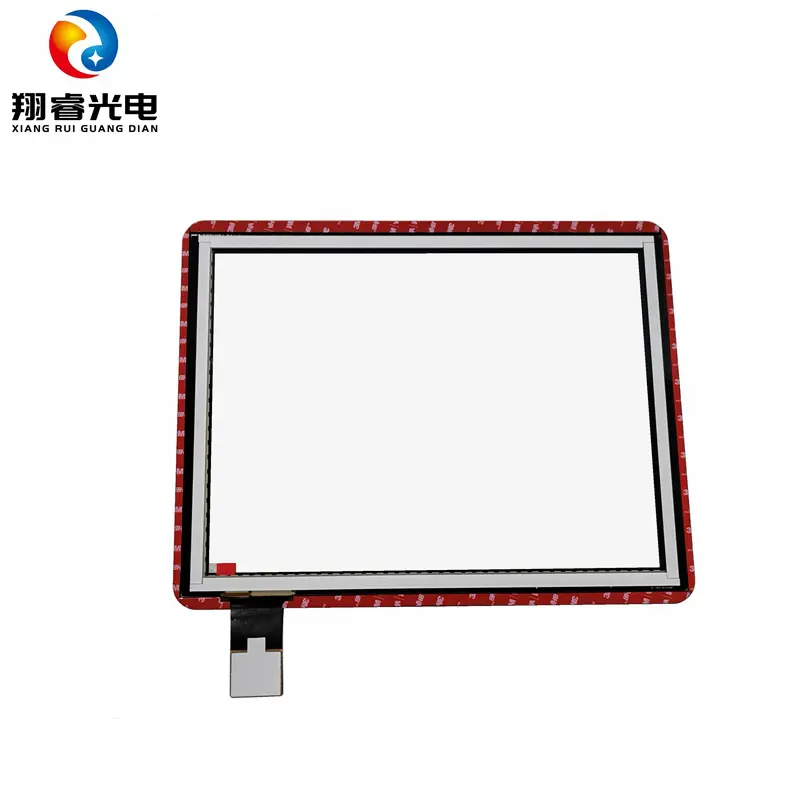

This product is a capacitive touch panel with GG structure, the back of cover glass and sensor is affixed with the back adhesive of different brands and models, and the product is USB communication interface.
The 15inch capacitive touch panel features GG structure, which ensures durability and reliability. This advanced construction allows for precise and accurate touch input, making it ideal for a wide range of applications.
One of the key features of this touch panel is its USB communication interface, which enables easy connectivity to a variety of devices. Whether it's a computer, tablet, or other digital equipment, the touch panel can be seamlessly integrated, providing a versatile and user-friendly interface.
In addition, the touch panel is equipped with a CG cover and sensor adhesive backing, further enhancing its durability and performance. The CG cover provides protection against scratches and impact, while the sensor adhesive backing ensures a secure and stable installation, even in demanding environments.
With its responsive and accurate touch sensitivity, the 15-inch capacitive touch screen offers a natural and effortless user experience. Whether it's swiping, tapping, or pinching, the touch screen delivers smooth and precise interactions, making it an ideal choice for interactive displays and digital signage.
The 15-inch capacitive touch screen is a product that combines advanced technology with user-friendly design. Its durable construction, seamless connectivity, and responsive touch sensitivity make it a versatile and reliable solution for a variety of industries. Whether it's for interactive displays, control panels, or digital signage, this touch screen is poised to elevate the way we interact with digital devices.
Frequently Asked Questions (FAQ)
What is the structure of this 15-inch touch panel?

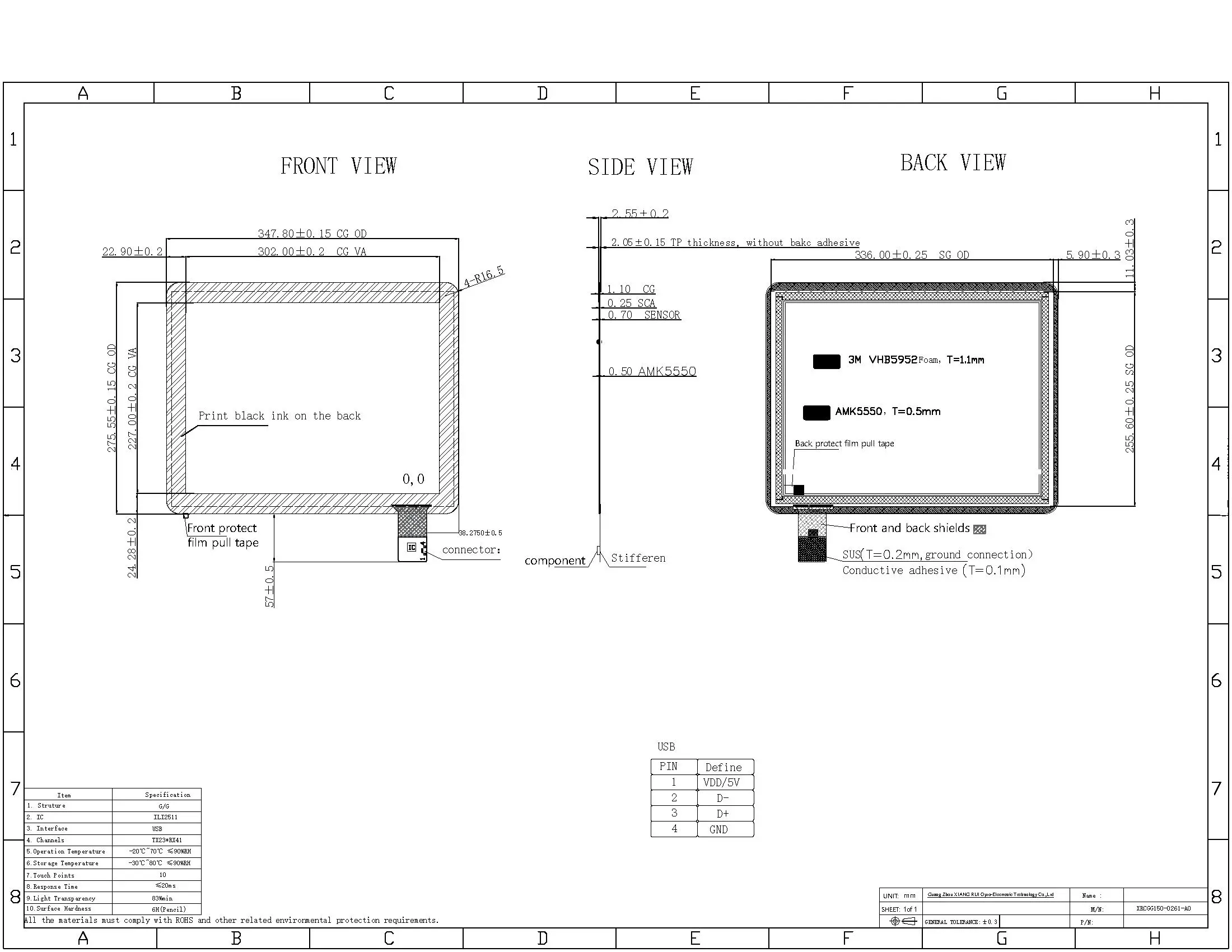

This touch panel features a Glass-on-Glass (GG) structure, consisting of a 1.1mm chemically strengthened cover glass, 0.25mm solid-state optical adhesive (SCA), and a 0.7mm double ITO shadow cancelling sensor glass.
Which controller IC and communication interface are used?
The product is integrated with the ILI2511 controller IC and utilizes a standard USB communication interface, making it easily compatible with various digital platforms.
What are the precise outline dimensions of this capacitive touch screen?
The Cover Glass (CG) outline is 347.80*275.55 mm, the Sensor Outline is 336.00*255.60 mm, and it offers an active View Area of 302.00*227.00 mm.
Does this 15-inch touch panel support multi-touch gestures?
Yes, the capacitive touch screen supports up to 10 simultaneous touch points, enabling smooth gestures like swiping, tapping, and pinching.
What is the response time and touch sensitivity like?
The panel offers high responsiveness with a touch response time of ≤20 milliseconds, providing smooth, precise, and effortless user interactions.
What types of adhesive are applied on the back?
The back of the cover glass is affixed with a VHB 5952 Gasket (1.1mm thickness), and the back of the sensor uses AMK 5550 adhesive (0.5mm thickness) for secure installation.
