High-Quality 5.7 inch Capacitive touch panel Supplier, Suppliers

The front and back of the product are pasted with PET protective film, and the back foam double-sided tape is retained for the release film shipment, which can effectively avoid the appearance of dirty and bad caused by the protective film.

Send Inquiry

Product Description

Introducing our latest technological innovation - the 5.7-inch capacitive touch panel. This cutting-edge product is designed to revolutionize the way you interact with your devices, delivering an unprecedentedly seamless and intuitive user experience.

This capacitive touch panel features a large 5.7-inch display, giving you enough space to easily interact with your device. Whether you’re scrolling web pages, playing games, or watching videos, the vibrant and responsive touchscreen ensures a smooth, immersive experience.

The screen’s capacitive touch technology enables precise touch input and is very user-friendly. You can easily swipe, tap, and pinch to zoom, giving you complete control of your device at your fingertips. Not only does this touchscreen offer superior functionality, it also boasts impressive visual clarity.

Additionally, the 5.7-inch capacitive touch panel is engineered to be durable and reliable, ensuring long-lasting performance. Its sturdy construction and scratch-resistant surface make it ideal for everyday use, giving users peace of mind.

Experience the future of touch screen technology with our 5.7-inch capacitive touch panel and discover a new level of convenience and fun in using your device.

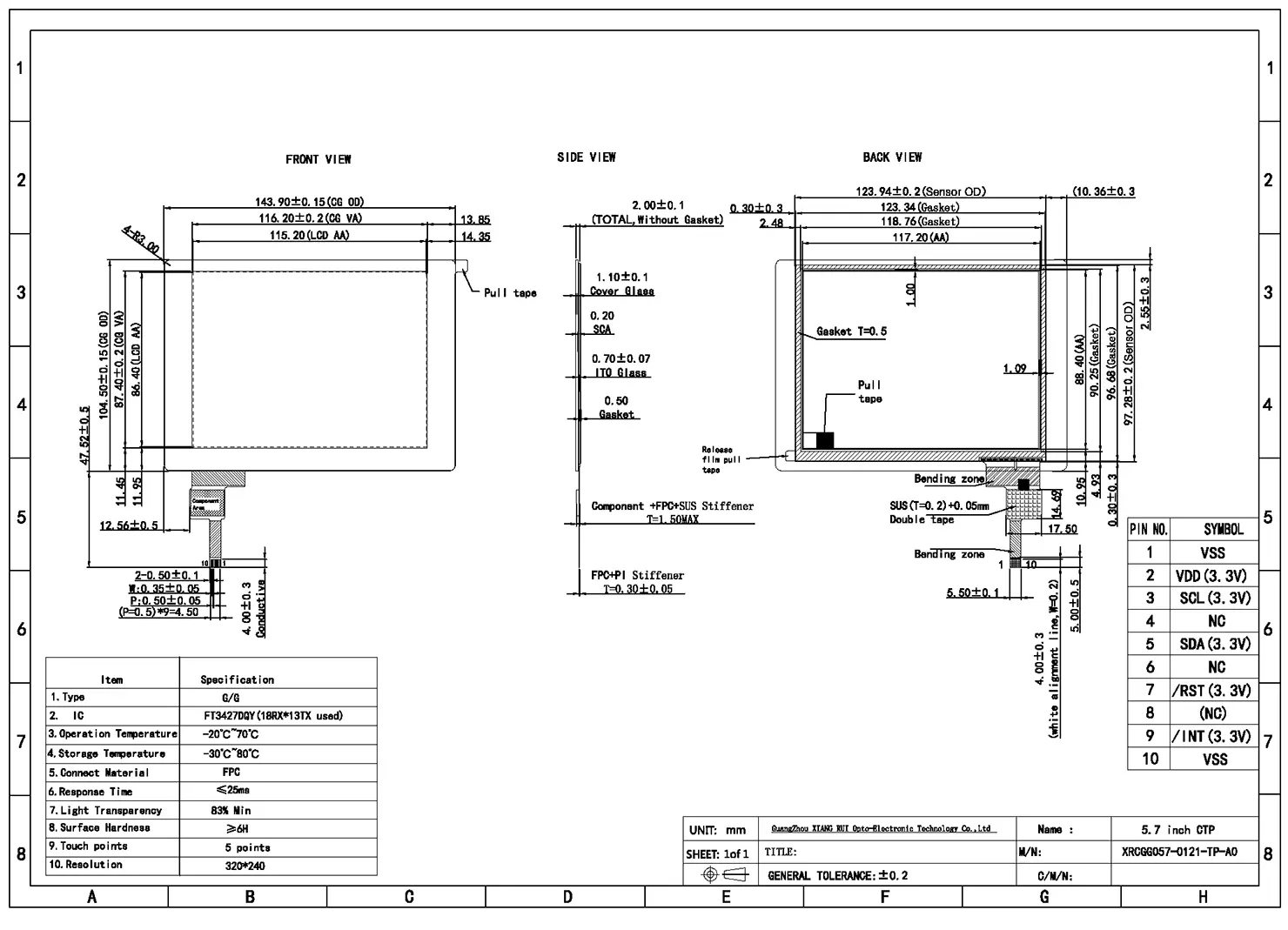

Product Drawing

5.7-inch capacitive touch panel engineering drawing

Structure Parameters

Part Name	Material	Thickness
Cover Glass	Chemically strengthened glass, black ink	1.1mm
SCA	Solid state optical adhesive	0.2mm
Sensor Glass	Double ITO shadow cancelling glass	0.7mm
Back Tape	Foam double-sided tape	0.5mm

Specification Details

Item	Contents	Unit
Product Size	5.7	inch
CG Outline	143.90 * 104.50	mm
Sensor Outline	123.94 * 97.28	mm
View Area	116.20 * 87.40	mm
IC Type	FT3427DQY	-
Interface	I2C	-
TFT Resolution	320 * 240	-
Response	≤ 25	ms
Touch Points	5	Point

⚠️ Note: The front and back of the product are pasted with PET protective film, and the back foam double-sided tape is retained for the release film shipment, which can effectively avoid the appearance of dirty and bad caused by the protective film.

Frequently Asked Questions

What are the primary materials used in this touch panel?

The touch panel structure features chemically strengthened cover glass (1.1mm), Solid State Optical Adhesive (SCA 0.2mm), Double ITO shadow cancelling sensor glass (0.7mm), and double-sided foam tape backing (0.5mm).

What interface and IC type does the touch panel use?

It features an I2C interface and runs on the high-performance FT3427DQY IC type to ensure precise response and multi-touch capabilities.

How many touch points does this capacitive screen support?

The 5.7-inch capacitive touch panel supports multi-touch functionality with up to 5 concurrent touch points.

What is the response time of the touch panel?

It features an ultra-responsive screen layout with a touch response speed of ≤ 25 milliseconds.

How is the product protected during shipping?

Both the front and back of the touch panel are covered with protective PET films, and the back foam tape release film is kept intact to prevent physical damage or contamination.
