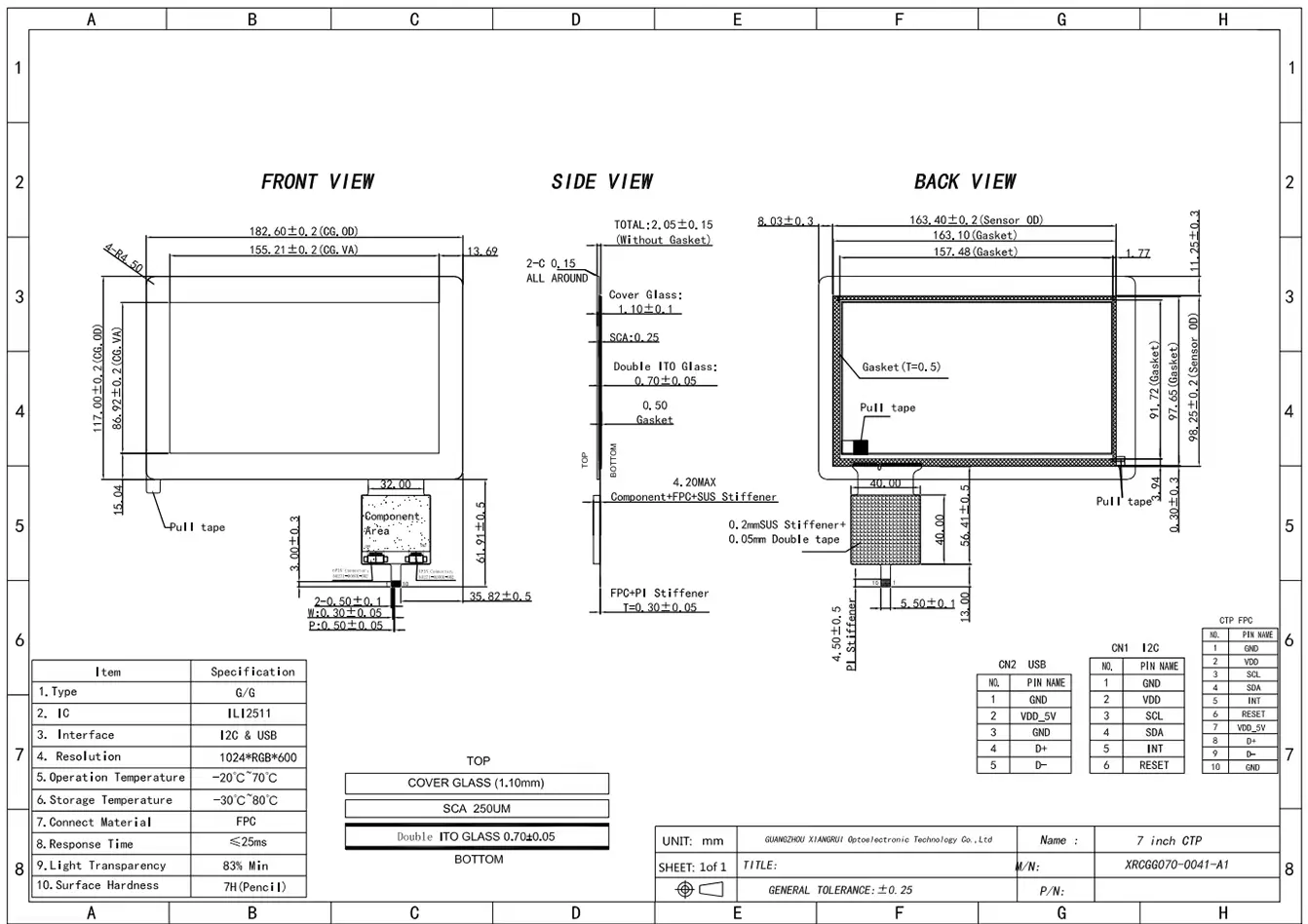

PRODUCT DRAWING
STRUCTURE
| Part Name |
Material |
Thickness |
| Cover Glass |
Soda-lime glass, etching AG, UV ink |
1.1mm |
| SCA |
Solid state optical adhesive |
0.25mm |
| Sensor Glass |
Double ITO shadow cancelling glass |
0.7mm |
| Back Tape |
Gasket double-sided adhesive |
0.5mm |
SPECIFICATION
| Item |
Contents |
Unit |
| Product Size |
7.0 |
inch |
| CG Outline |
182.60 * 117.00 |
mm |
| Sensor Outline |
163.40 * 98.25 |
mm |
| View Area |
155.21 * 86.92 |
mm |
| IC Type |
ILI2511 |
- |
| Interface |
USB & I2C |
- |
| TFT Resolution |
1024 * RGB * 600 |
- |
| Response |
≤ 25 |
ms |
| Touch Point |
5 |
- |
There are many projects sharing this FOG, and the difference of this series of products lies in the different size, thickness and effect of cover glass.
PRODUCT DESCRIPTION
Introducing our latest innovation in touch screen technology - the 7-inch GG structure capacitive touch panel. This cutting-edge monitor delivers a seamless and responsive user experience, making it the perfect solution for a variety of applications.
This touch panel features GG construction for superior durability and reliability, ensuring long-lasting performance in demanding environments. Capacitive touch technology provides precise touch response, allowing users to interact with the screen easily.
This 7-inch touch panel is designed to meet the needs of various industries such as industrial control, medical equipment and consumer electronics. Its versatility makes it suitable for dashboard displays, control panels, kiosks and more.
The high-resolution display ensures clear visuals and is ideal for displaying graphics, videos and interactive content. Whether it's entertainment, information display or control interface, this touchscreen delivers a vibrant and engaging viewing experience.
In addition to its superior performance, the 7-inch GG structure capacitive touch panel is easy to integrate and customize, and can be seamlessly integrated into existing systems and designs. Its compact size and lightweight design make it a practical choice for space-constrained applications.
Additionally, the touchscreen is designed to meet strict quality standards, ensuring reliable and consistent operation. Its ability to withstand the rigors of continuous use makes it a reliable solution for mission-critical applications.
Overall, the 7-inch GG structure capacitive touch panel sets a new standard for touchscreen monitors, combining durability, responsiveness and versatility.
Frequently Asked Questions (FAQ)
What are the main applications of this 7-inch capacitive touch panel?
This touch panel is versatile and ideal for industrial control, medical equipment, consumer electronics, dashboards, control panels, and kiosks.
What interface types does the touch panel support?
The product supports both USB and I2C interfaces for flexible integration into various systems.
What is the response time and touch point support for this device?
It features a fast response time of ≤25 ms and supports up to 5 multi-touch points.
What structure is utilized in the design of this touch panel?
It utilizes a GG (Glass-on-Glass) structure, which provides superior durability, scratch resistance, and long-lasting performance.
Are customizable options available for the cover glass?
Yes, options for different sizes, thicknesses, and surface treatments (like etching AG) are available depending on project requirements.
