| Part Name | Material | Thickness |
|---|---|---|
| Top Circuit | Anti-glare hard coating ITO Film, 500 Ω/□ | 0.188mm |
| Spacer | Double side tape | 0.1mm |
| Bottom Circuit | Anti-glare hard coating ITO Film, 500 Ω/□ | 0.7mm |
| OCA | Optical adhesive | 0.1mm |
| Substrate Glass | Strengthened substrate glass | 1.8mm |
| Back Adhesive | Double side tape | 0.175mm |
| Item | Contents | Unit |
|---|---|---|
| Product Size | 7.0 | inch |
| Outline Dimension | 164.20*103.20 | mm |
| View Area | 155.00*88.44 | mm |
| Active Area | 154.20*87.24 | mm |
| Max Voltage | DC 3~15V, 1mA | - |
| Resistance | X: 200~800 Y: 200~800 |
Ω |
| Insulation Resistance | DC 25V, ≥20 MΩ | - |
| Chattering Time | ≤10 | ms |
| Operation Force | 10~100 | g |
| Linearity | ≤1.5% | - |
| Pen Sliding Durability | ≥100,000 | times |
| Tapping Durability | ≥1,000,000 | times |

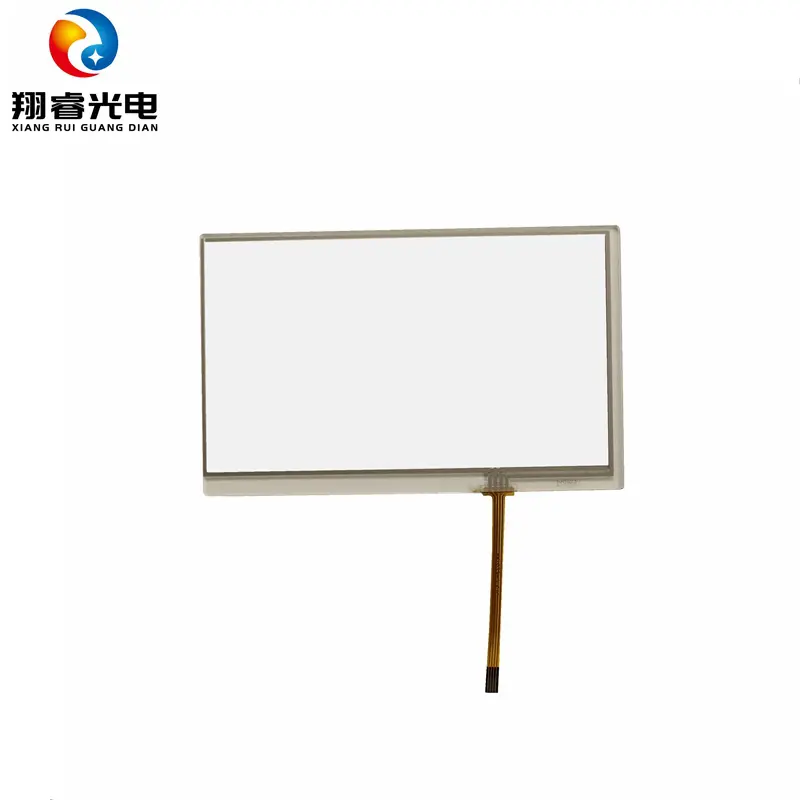

This product features a three-layer structure resistive touch panel. The structural shape design is highly flexible, allowing it to meet various custom-shaped design requirements.
One of the key features of the 7.0 resistive touch panel is its flexibility in design. Unlike traditional touch screens, this innovative product can be shaped and customized to fit a variety of form factors and applications. Whether it’s a curved display, a unique size, or a non-standard shape, the 7.0 resistive touch panel can be tailored to meet specific design requirements. This opens up a world of possibilities for product designers and manufacturers, allowing them to create truly unique and innovative devices.
In addition to its advanced design and flexibility, the 7.0 resistive touch panel offers a range of benefits for both end-users and manufacturers. Its durable construction ensures long-lasting performance, making it suitable for demanding environments and applications. The touch panel is also highly responsive, allowing for precise input even with gloves or styluses, making it ideal for industrial, medical, and outdoor use.
Furthermore, the 7.0 resistive touch panel is easy to integrate into existing products and systems, thanks to its compatibility with a wide range of hardware and software platforms. This makes it a versatile solution for a variety of applications, from consumer electronics to industrial control systems.
Whether you’re designing a new product or looking to upgrade an existing one, the 7.0 resistive touch panel offers a compelling combination of performance, flexibility, and durability. Its innovative three-layer structure and customizable design capabilities make it a standout choice for a wide range of applications.

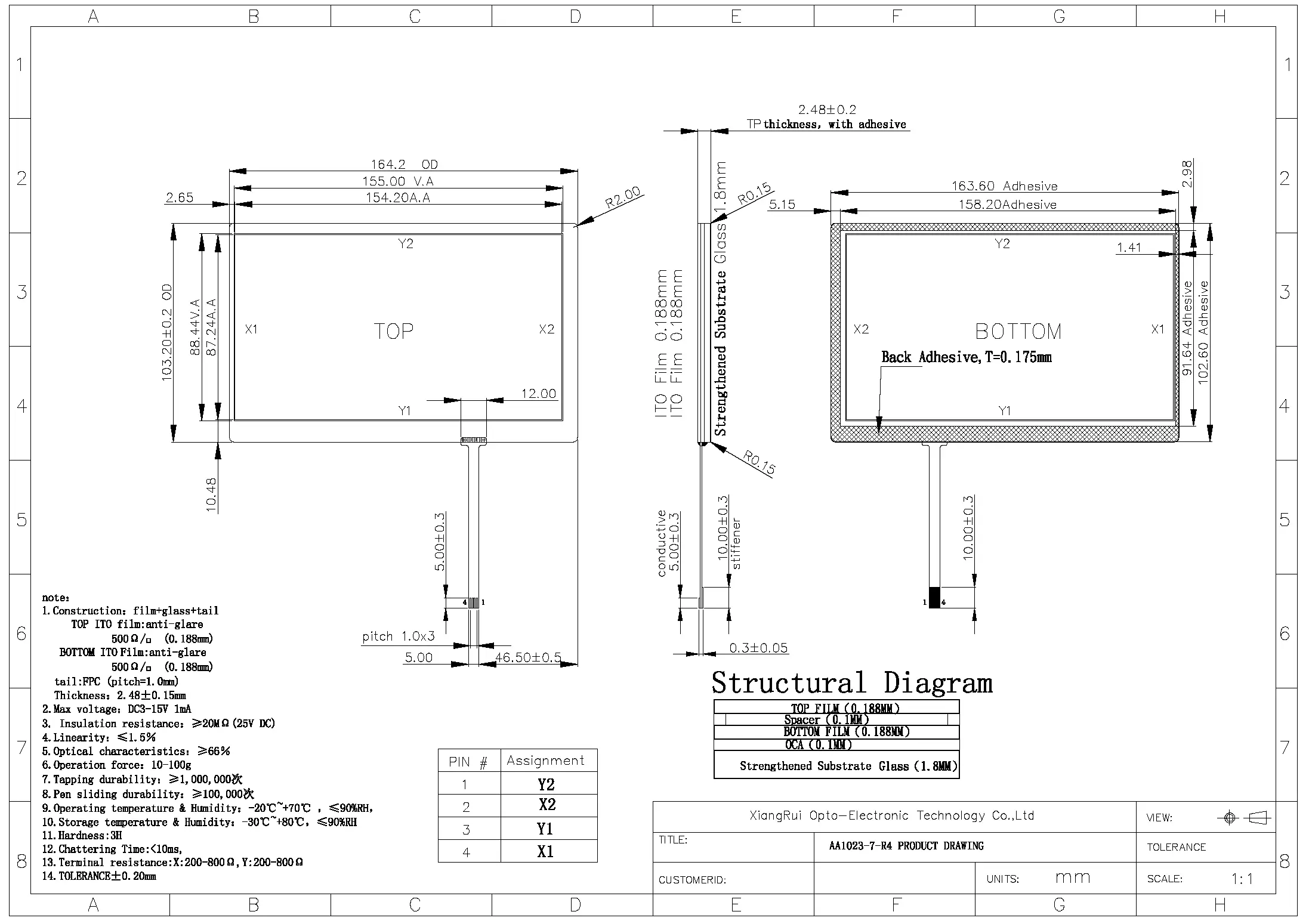

The touch panel features an innovative three-layer structure consisting of a Top Circuit (Anti-glare hard coating ITO Film), a Spacer (Double-sided tape), and a Bottom Circuit (Anti-glare hard coating ITO Film), supported by OCA and a strengthened substrate glass.
Yes. Due to its flexible three-layer design, the shape can be customized to meet specific requirements, including curved displays, unique sizes, and non-standard form factors.
The panel is designed for high durability, with a pen sliding durability of ≥100,000 times and a tapping durability of ≥1,000,000 times, making it suitable for demanding environments.
Yes, the touch panel is highly responsive and supports precise input from fingers, gloved hands, and styluses, which is ideal for medical, industrial, and outdoor applications.
It is highly compatible with a wide range of hardware and software platforms, making it easy to integrate into existing systems like consumer electronics and industrial control panels.
