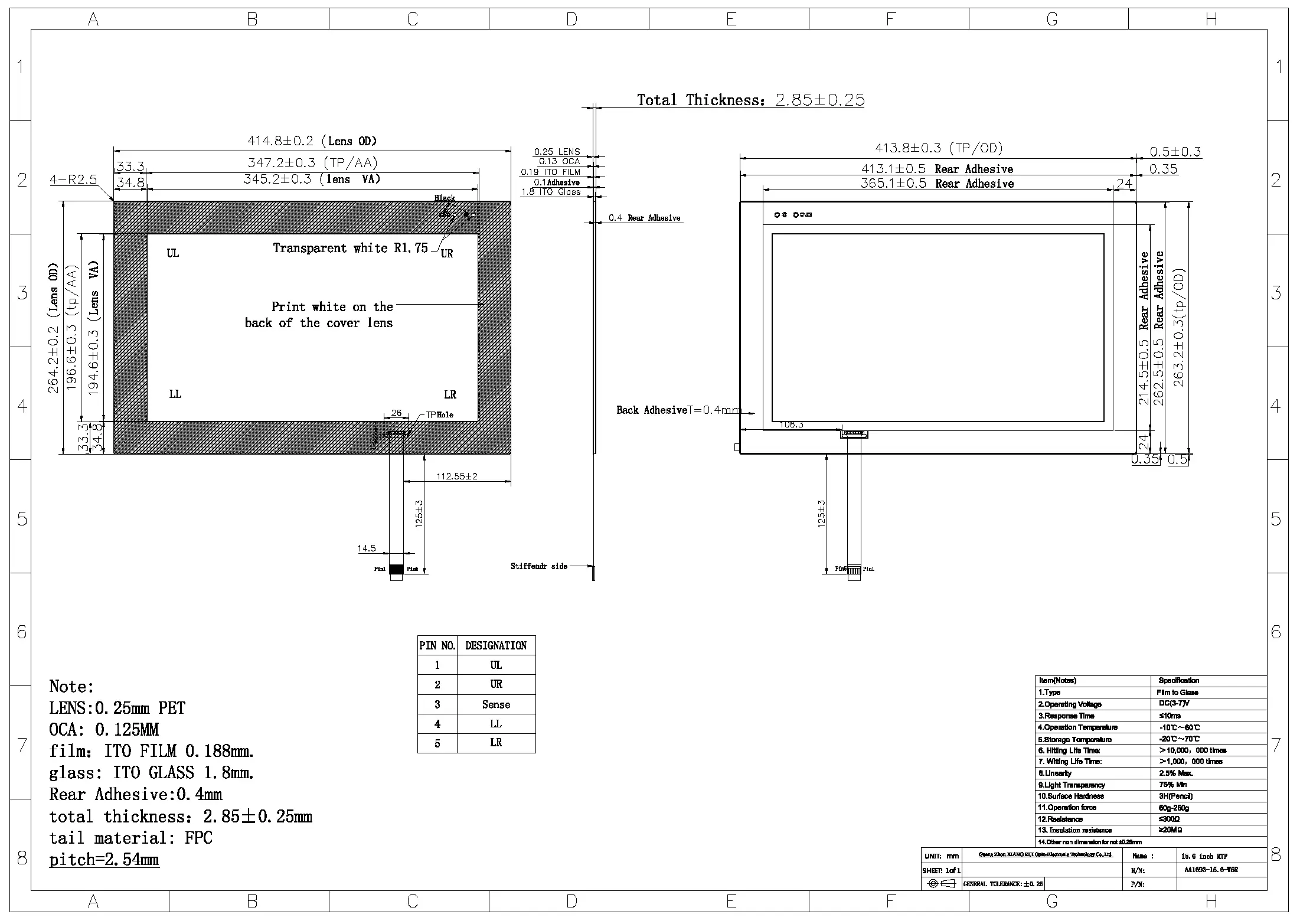

| Part Name | Material | Thickness |
|---|---|---|
| LENS | PET | 0.25mm |
| OCA | Optical adhesive | 0.125mm |
| Top Circuit | Anti-glare hard coating ITO Film, 500Ω/□ | 0.188mm |
| Spacer | Double side tape | 0.1mm |
| Bottom Circuit | ITO Glass, 500Ω/□ | 1.8mm |
| Back Adhesive | Double side tape | 0.4mm |
| Item | Contents | Unit |
|---|---|---|
| Product Size | 15.6 | inch |
| Outline Dimension | 414.80*264.20 | mm |
| View Area | 345.20*194.60 | mm |
| Active Area | 347.20*196.60 | mm |
| Max Voltage | DC 3~7V,1mA | - |
| Resistance | ≤300 | Ω |
| Insulation Resistance | DC 25V, ≥20 MΩ | - |
| Chattering Time | ≤10 | ms |
| Operation Force | 60~250 | g |
| Linearity | ≤2.5% | - |
| Pen Sliding Durability | ≥1,000,000 | times |
| Tapping Durability | ≥10,000,000 | times |
The 15.6-inch 5-wire resistive touch panel is built with a three-layer structure that ensures durability and reliability. The special shape design of the touch panel allows for precise and accurate touch input, making it easy for users to interact with the display.
With its advanced 5-wire resistive technology, the touchscreen delivers precise touch response, allowing users to easily interact with content. Whether browsing menus, drawing, or typing, touch screens provide a smooth, responsive touch experience that increases productivity and efficiency.
This touch panel is engineered for durability and reliability to withstand the rigors of continuous use. Its sturdy construction ensures long-term performance, making it a cost-effective investment for businesses and organizations.
In addition to superior touch functionality, the 15.6-inch touch panel offers high-quality visuals, vibrant colors, and crisp image clarity. Whether used for digital signage, interactive kiosks or point-of-sale systems, displays deliver stunning visuals that engage your audience and leave a lasting impression.
The touch panel also offers a user-friendly interface with intuitive controls and customizable settings to meet specific user requirements. Its user-friendly design ensures that users of all levels can easily navigate and interact with the touch panel, making it suitable for a wide audience.
The 15.6-inch touch panel features a sleek, modern design that adds a touch of sophistication to any environment. Its slim profile and sleek aesthetic make it a visual attraction in any space, enhancing the overall ambience and creating a modern look.
