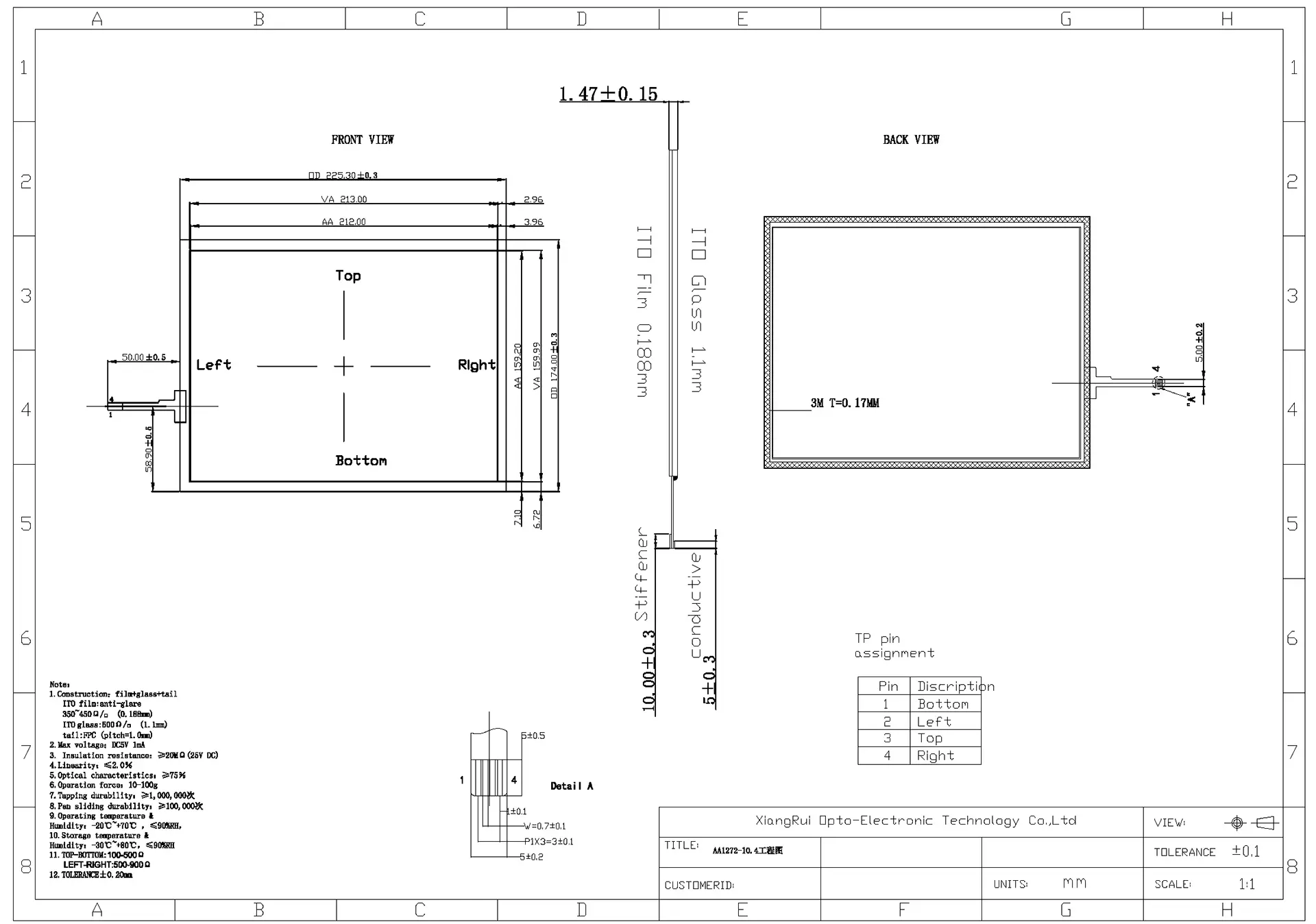

Product Drawing

Structure

Part Name	Material	Thickness
Top Circuit	Anti-glare hard coating ITO Film, 350~450 Ω/□	0.188mm
Spacer	Double side tape	0.1mm
Bottom Circuit	ITO Glass, 500 Ω/□	1.1mm
Back Tape	Double side tape	0.17mm

Specification

Item	Contents	Unit
Product Size	10.4	inch
Outline Dimension	225.30 * 174.00	mm
View Area	213.00 * 159.99	mm
Active Area	212.00 * 159.20	mm
Max Voltage	DC 5V, 1mA	—
Resistance	Top~Bottom: 100~500 \| Left~Right: 500~900	Ω
Insulation Resistance	DC 25V, ≥20 MΩ	—
Chattering Time	≤15	ms
Operation Force	10~100	g
Linearity	≤2.0%	—
Pen Sliding Durability	≥100,000	times
Tapping Durability	≥1,000,000	times
