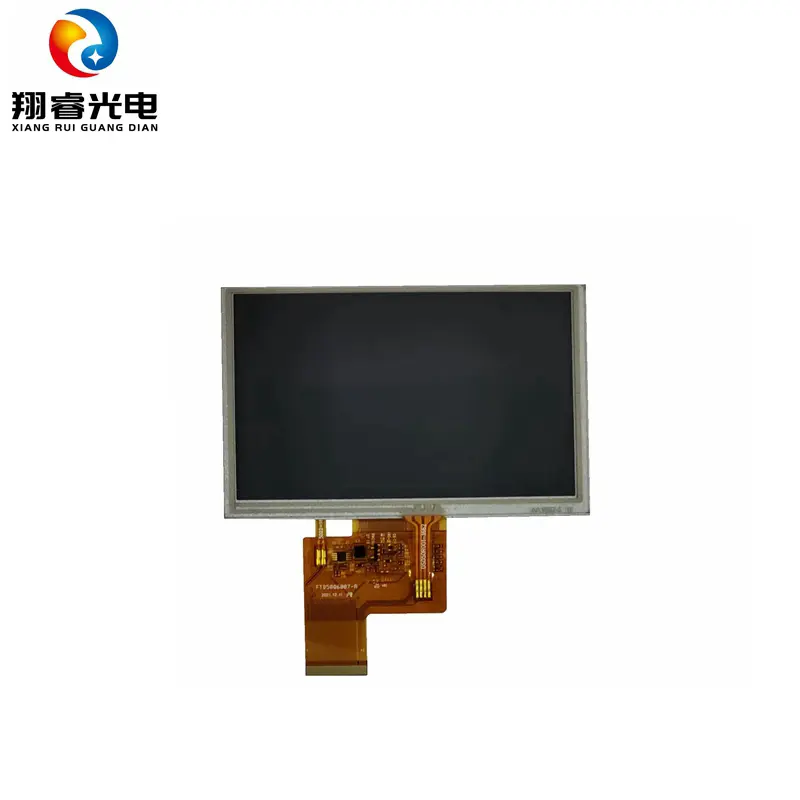

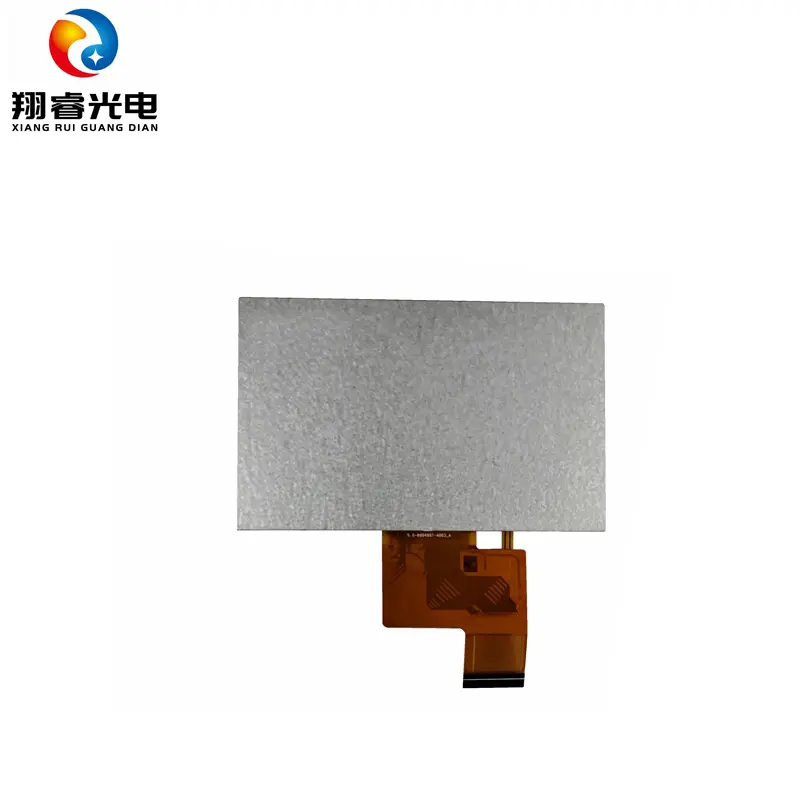

This product is a resistance touch screen frame fitting product, the touch panel is produced by us, the module is supplied by the customer, and we assemble and ship it to the customer.
5.0-inch resistive touch panel frame fit, this innovative touch panel frame is designed to deliver exceptional performance and reliability, making it the ideal solution for various applications, including industrial control panels, medical devices, and consumer electronics.
With its precise and responsive touch functionality, the 5.0-inch resistive touch screen frame fit offers users a smooth and accurate touch experience. Whether it’s navigating through menus, inputting data, or interacting with applications, this touch screen frame ensures effortless and precise control, enhancing the overall user experience.
One of the key features of this touch screen frame is its compatibility with a wide range of devices. Its versatile design allows for seamless integration into different products, making it a versatile solution for manufacturers looking to incorporate touch functionality into their devices. From handheld devices to larger industrial panels, this touch screen frame fit is adaptable to various form factors, making it a versatile and cost-effective choice for product development.
Furthermore, the 5.0-inch resistive touch screen frame fit is designed with ease of installation and maintenance in mind. Its user-friendly design simplifies the integration process, allowing for quick and hassle-free installation. Additionally, its low maintenance requirements make it a cost-effective solution for manufacturers and end-users alike.
Overall, the 5.0-inch resistive touch screen frame fit is a versatile, reliable, and high-performance solution for integrating touch functionality into a wide range of devices. Its precise touch control, compatibility with various form factors, durability, and ease of installation make it an ideal choice for manufacturers and developers seeking to enhance the user experience of their products.

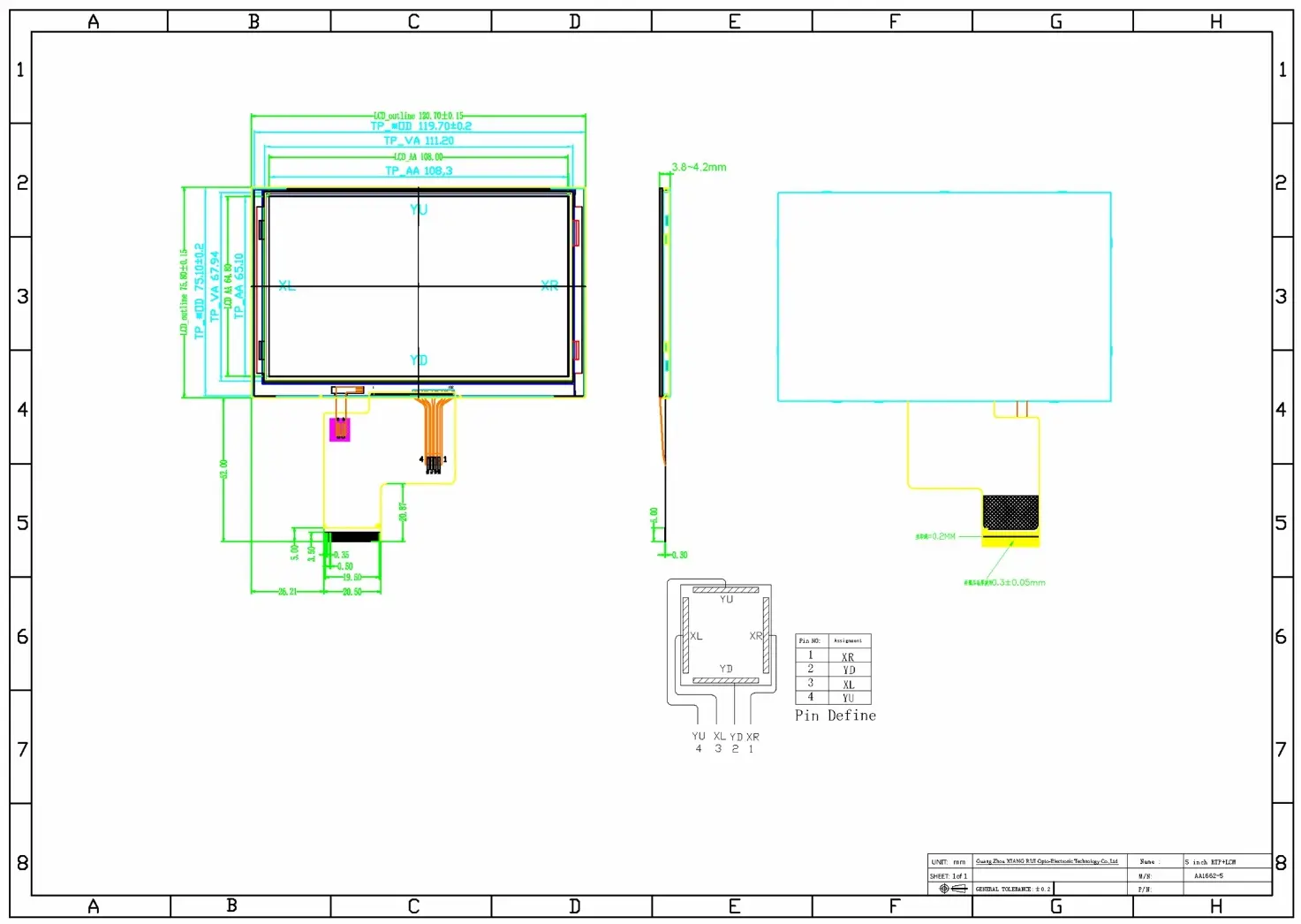

Product Drawing
Structure
Part Name
Material
Thickness
Top Circuit
Anti-glare hard coating & Anti-newton rings ITO Film, 350~450 Ω/□
0.188mm
Spacer
Double side tape
0.1mm
Bottom Circuit
ITO Glass, 500 Ω/□
0.7mm
Back Tape
Double side tape
0.15mm
LCD
Liquid crystal display module
4.15mm
Specification
Item
Contents
Unit
Product Size
5.0
inch
Outline Dimension
119.70 * 75.10
mm
View Area
111.20 * 67.94
mm
Active Area
108.30 * 65.10
mm
Resistance
X: 450~850 | Y: 150~400
Ω
Insulation Resistance
DC 25V, ≥20 MΩ
Chattering Time
≤10
ms
Operation Force
<120
g
Linearity
≤1.5%
Pen Sliding Durability
≥100,000
times
Tapping Durability
≥1,000,000
times
TFT Resolution
800 * 480
Please Note: This product is a resistance touch screen frame fitting product. The touch panel is produced by us, the module is supplied by the customer, and we assemble and ship it to the customer.
Frequently Asked Questions (FAQ)
What are the main applications for this 5.0-inch resistive touch screen?
This touch screen is highly versatile and designed for various professional applications, including industrial control panels, medical devices, and consumer electronics.
What is the resolution and display size of this module?
The touch panel has a screen size of 5.0 inches and supports a TFT resolution of 800 * 480 pixels.
How durable is the touch panel under continuous operation?
It is built for high durability, featuring a pen sliding durability of ≥100,000 times and a tapping durability of ≥1,000,000 times.
What materials are used in the construction of this touch panel?
The structure includes an Anti-glare hard coating & Anti-newton rings ITO Film for the top circuit, double-sided tape spacers, and an ITO Glass bottom circuit.
How is the final product assembled and supplied?
We produce the touch panel component, while the LCD/display module is supplied by the customer. We then perform the frame fitting, final assembly, and shipping.
