| Part Name | Material | Thickness |
|---|---|---|
| Lens | PMMA | 2.0mm |
| OCA | Optical adhesive | 0.125mm |
| ITO Film | ITO, PET | 0.188mm |
| Back Adhesive | Double side tape | 0.06mm |
| Tail type | FPC | 0.3mm |
| Item | Contents | Unit |
|---|---|---|
| Product Size | 4.3 | inch |
| Lens Outline | 151.20 * 131.20 | mm |
| Sensor Outline | 150.40 * 130.40 | mm |
| View Area | 94.50 * 53.90 | mm |
| Max Voltage | DC 5V, 5mA | - |

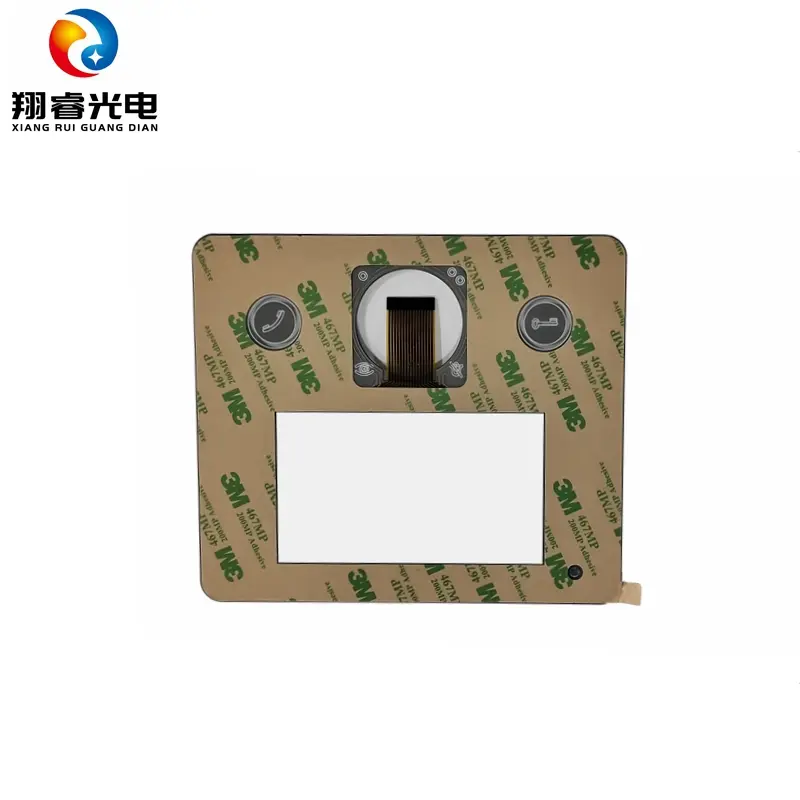

This product is a capacitive touch button. The lens is configured with precision holes and supports multiple button interfaces. The button shapes are diverse to accommodate different application requirements, and the product is engineered with an FPC extraction interface for optimal connectivity.
With its sleek design and advanced functionality, this 4.3-inch capacitive touch button is set to become a benchmark in modern user interface technology.
Featuring a high-performance 4.3-inch capacitive touch panel, this device offers an exceptionally responsive touch interface for smooth, precise control and navigation.
Boasting a customizable panel opening layout, it integrates seamlessly into a variety of application housings, from advanced consumer electronics to heavy-duty industrial machinery.
Designed with versatility in mind, the button layouts and functional options can be customized to match exact operational profiles and specific graphic designs.
The integration is streamlined through an FPC (Flexible Printed Circuit) lead out, ensuring a secure connection interface that minimizes design complexity and long-term maintenance needs.
Replacing outdated mechanical switches, this advanced button panel elevates device aesthetics and operational lifespan to meet modern technology standards.

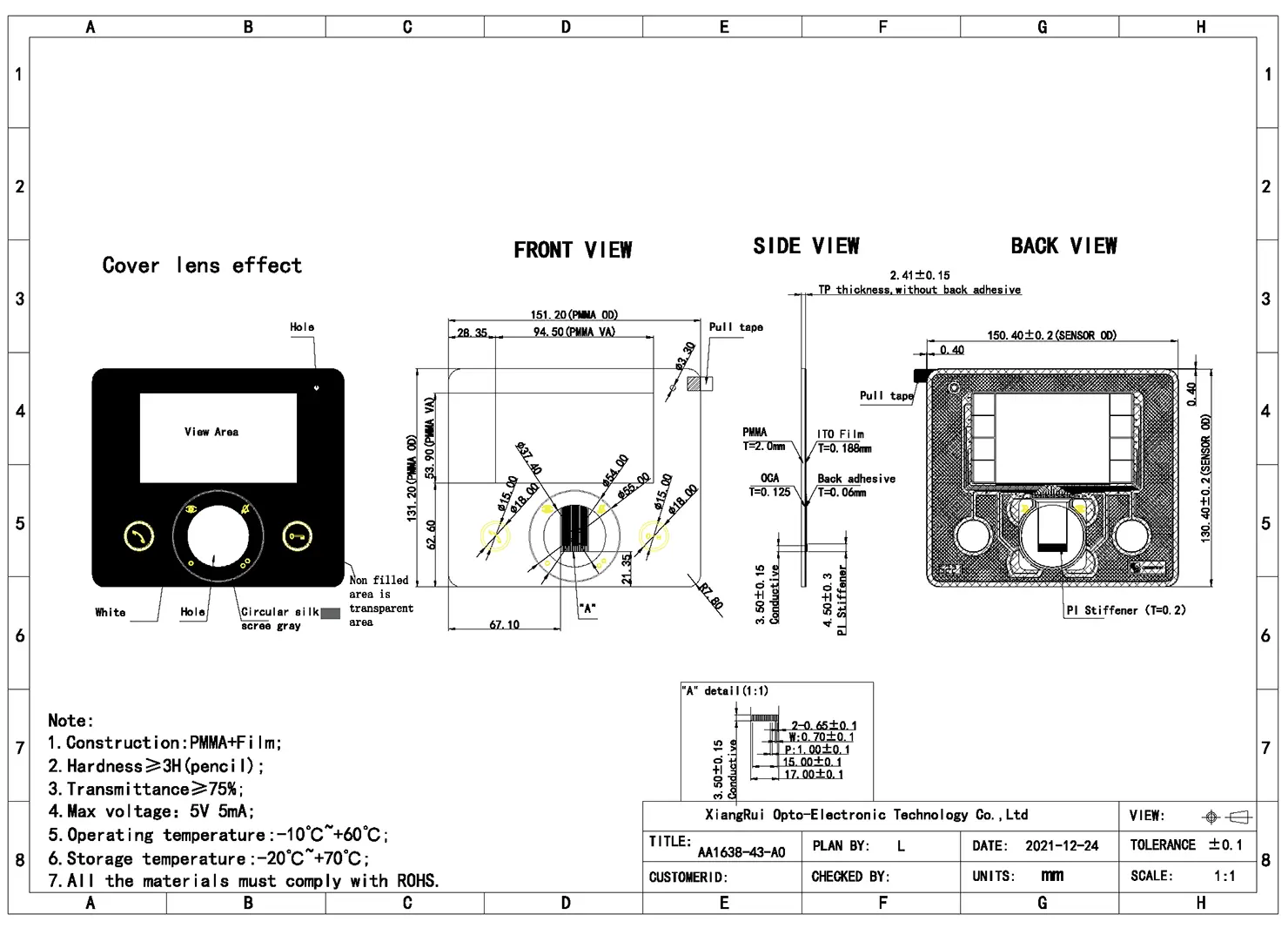

The construction features a 2.0mm PMMA lens, a 0.125mm optical adhesive (OCA) layer, a 0.188mm ITO Film (PET substrate), a 0.06mm double-sided back adhesive, and a 0.3mm FPC tail connection interface.
The outer dimensions of the lens are 151.20 mm x 131.20 mm, while the sensor outline is 150.40 mm x 130.40 mm. The clear viewing area (VA) measures 94.50 mm x 53.90 mm.
The maximum voltage for correct and safe operation of the capacitive touch system is DC 5V, with a maximum operating current of 5mA.
Yes, this capacitive button lens features custom holes and button shapes. Users can specify various graphic designs and configurations to fit specific electronic housings.
The module is designed with a reliable FPC (Flexible Printed Circuit) extraction interface, which streamlines integration and ensures a robust electrical connection with the control board.
