Discover our custom industrial-grade touch modules, engineered for durability, optical clarity, and extreme operating parameters.
Founded in 2010 and located in Guangzhou, China, Guangzhou Xiangrui Optoelectronics Technology Co., Ltd. is a specialized high-tech enterprise dedicated to the research, development, engineering design, and volume production of resistive touch panels, capacitive touch panels, cover glass, and complete module bonding products. We offer turn-key, customized touch solutions spanning OEM and ODM services designed to excel in high-reliability applications.
With fully certified operations under ISO 9001:2015 and ISO 14001:2015, we deliver robust solutions across the global marketplace. Our hardware interfaces are built into key equipment configurations inside medical rooms, high-demand industrial processing floors, smart home hubs, marine navigation interfaces, and secure outdoor palmprint identification systems.
More than 30 utility patents and technological innovation certifications earned since 2010.
High-precision customized touch interfaces exported to over 40 countries across 5 continents.
Equipped with Class 100, Class 1,000, and Class 10,000 cleanroom environments for optical bonding.
Decade-long solid commitment to material science advancements in touch sensor technology.
Why global OEMs are migrating from resistive overlay technologies to high-performance, multi-touch capacitive structures.
Our industrial PCAP modules feature specialized coatings and controller tuning, enabling operation in wide-temperature environments (-40°C to +85°C). They maintain 100% precision even when exposed to condensation, salt spray, or dust particles.
By eliminating the air gap between the touch sensor and the TFT LCD panel, optical bonding reduces light reflection by up to 90%, increases mechanical shock resistance, and completely prevents internal moisture buildup under high-humidity conditions.
Engineered with high-end controllers (including EETI, Ilitek, and Microchip chips), our customized screens support up to 10 independent touch points. They also enable complex gesture mapping, heavy-glove operations, and advanced palm rejection.
In today's commercial and industrial landscape, user expectation has shifted toward seamless glass interfaces similar to modern consumer smartphones. However, industrial systems demand much higher durability. In heavy industrial automation, medical diagnostics, and public outdoor kiosks, the touch interface must survive continuous cycles, intense UV radiation, impact forces (IK ratings up to IK10), and chemical washes.
Purchasing managers from North America, Europe, and Asia look for display suppliers that offer customizable cover glass treatments: Anti-Glare (AG) to eliminate reflections under harsh lighting, Anti-Reflective (AR) to maximize light transmission for outdoor display readability, and Anti-Fingerprint/Anti-Smudge (AF) coatings to simplify cleaning and maintain hygiene in clinical medical environments.

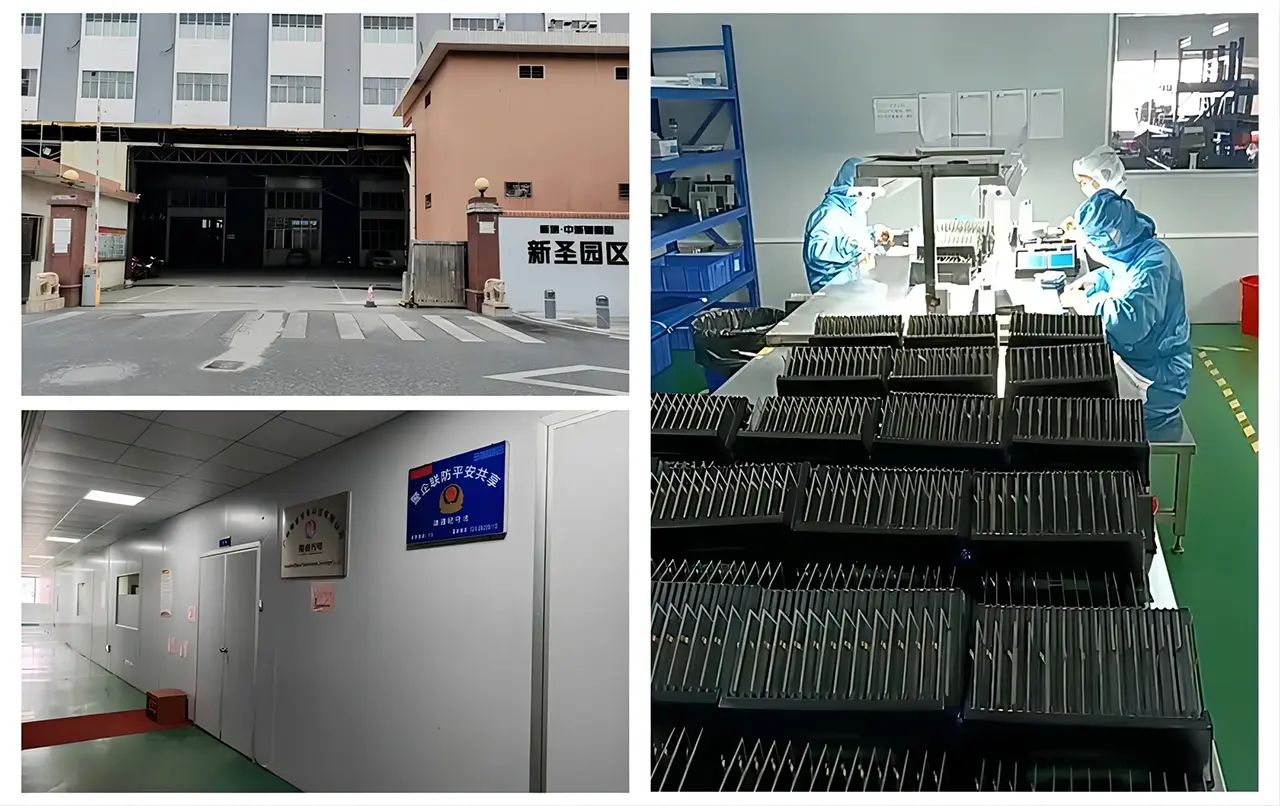

The manufacturing infrastructure of Guangzhou Xiangrui Optoelectronics is a direct reflection of China's Factory 4.0 modernization. By integrating localized component ecosystems, high-volume automated production lines, and digital quality monitoring, we provide competitive lead times and deep customizable capabilities. Our factory's cleanroom footprint ensures strict environmental control at each critical step: sensor patterning, FPC bonding, cover glass lamination, and final display integration.
Our integrated supply chain model allows us to easily source raw materials, custom-sized cover glasses, and specific driver chipsets. This capability enables us to shorten prototyping phases for bespoke projects from several months to just a few weeks. By utilizing state-of-the-art optical alignment equipment and automated glue dispensing tools, we achieve consistent alignment precision, ensuring high yield and excellent reliability across high-volume production runs.
We combine advanced technological engineering with an honest, pragmatic approach to corporate growth. Our team is constantly researching and testing new processes and materials to ensure that our touch panel products remain competitive in the market.
We operate on the principles of reputation first and quality satisfaction. This dedication has helped us build long-term relationships with top-tier industrial enterprises and well-known electronics manufacturers worldwide.
By maintaining ISO 9001 and ISO 14001 certifications, we standardize every step of our manufacturing. From raw glass preparation to final cleanroom lamination, we trace all metrics to guarantee stability under harsh conditions.
Our R&D engineers have secured numerous utility and invention patents. In recognition of our technical contributions, our factory was officially named a "High-Tech Enterprise of Guangdong Province" in 2022.
An engineering comparison to help select the right touch technology for your system architecture.
| Performance Characteristic | Projected Capacitive (PCAP) | Resistive Touch (4-Wire / 5-Wire) | Primary Selection Driver |
|---|---|---|---|
| Touch Sensing Mechanism | Electrostatic field perturbation detection | Mechanical pressure closing the conductive gap | Sensitivity vs. Physical deformation force |
| Multi-Touch Capability | Supports up to 10 points (with gestures) | Single-touch only (mechanically restricted) | User experience complexity and gesture mapping |
| Optical Clarity / Transmission | High transparency (>90%), supports optical bonding | Lower transparency (75%-85%) due to multiple film layers | Sunlight readability and display color accuracy |
| Mechanical Durability | Resistant to scratches; utilizes tempered cover glass | Subject to wear, scratches, and damage from sharp tools | Maintenance-free cycles and anti-vandalism needs |
| Stylus / Glove Compatibility | Supports passive conductive pens and medical/industrial gloves | Works with any pointer (fingers, gloves, plastic tools) | Operational flexibility in extreme work zones |
| Impact Resistance (IK Rating) | Supports thick IK10 cover glass (up to 10mm glass thickness) | Low; requires flexible PET film as the outer layer | Physical environment protection levels |
Real-world deployments where custom-engineered PCAP and Resistive technologies are critical to operation.
Our wide-temperature optical bonded PCAP screens (such as our 1.54", 10.1", and 15.6" options) allow surgical staff to operate displays while wearing thick latex gloves. Anti-fingerprint (AF) and Anti-microbial coatings prevent bacteria buildup, while the seamless glass surface resists medical cleaning chemicals like alcohol and bleach.
Deployments like palmprint recognition terminals, ticketing kiosks, and outdoor charging stations require high sunlight readability. Our wide-temperature touch panels, with IP65-rated seals and UV-blocking coatings, deliver consistent touch response and clear visibility in outdoor environments.
On production floors, machinery displays face continuous vibrations and high electromagnetic noise (EMI). Guangzhou Xiangrui's custom PCAP modules feature industrial-grade touch ICs that filter out electrical noise, preventing false touch inputs from surrounding heavy machinery.
Expert engineering answers addressing design concerns, technical parameters, and procurement queries regarding custom PCAP products.
Explore the rest of our product range, which includes wide-temperature resistive overlay sensors and custom-engineered PCAP systems.
